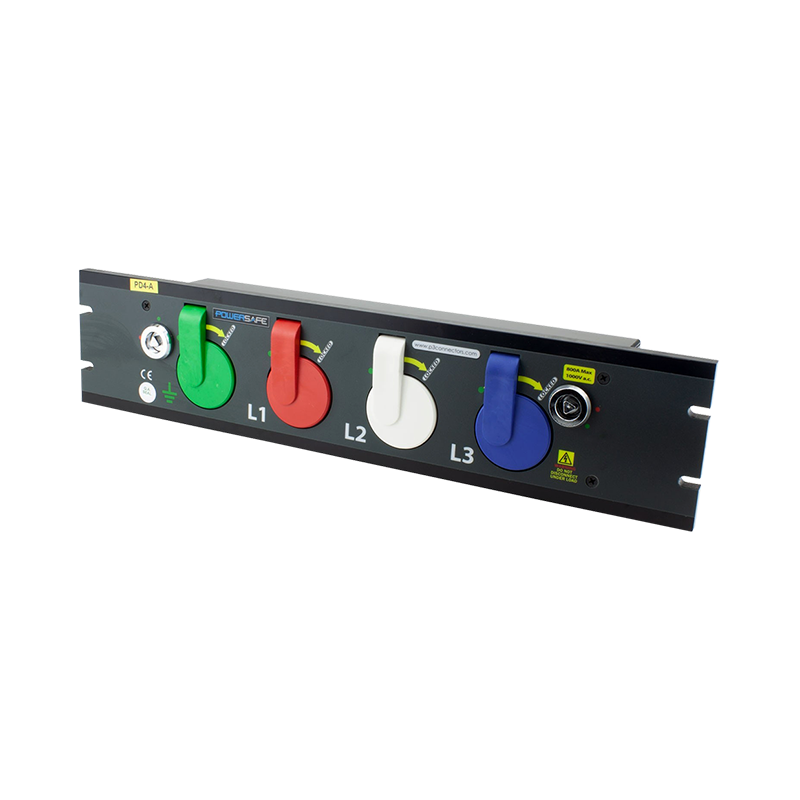

Powersafe 4U Distribution Box

The Powersafe Distribution Box is an electrical connection point for single-pole connectors in three-phase electrical installations with currents up to 800 amps.

Technical Specifications:

• Maximum rated voltage to earth: 2 kV AC
• Rated current: up to 800 A
• Rear terminals: M12 x 25 threaded studs
• Microswitch current rating: 250 V AC / 3 A
• Certification: Manufactured in accordance with ISO 9001:2015

Product Features

		800 A current rating The build quality of the Phase 3 is unmatched. Our distribution boxes have a high current carrying capacity of up to 800 A.
		Cable with M12 connector Universal connections, such as M12, make this distribution box very versatile.
		Key Lock System Secure your box with the key lock system.
		Remote Control Each distribution box has a remote control connector.

Mounting Options:

Option 2 - Front Panel Mount (4U)

Dimensions: Height = 108 mm, Length = 483 mm, Depth = 130 mm

Safety Features

The Powersafe box features a sequential connection lockout system (FMLB), which ensures that safety circuits are connected first and disconnected last. The key system eliminates the possibility of connection errors.

Compatibility

The Powerlock box accepts Powersafe power connectors and is compatible with products from other manufacturers. This is a single-pole (1P) electrical device with a reinforced design, suitable for low-voltage power distribution.

Ordering Codes

How to Order

PD5 = Drainage Box
PS5 = Source Box LID = Optional Cover (for IP67 rating)

Country

E - Europe
A - Australia
UK - United Kingdom
US - United States
