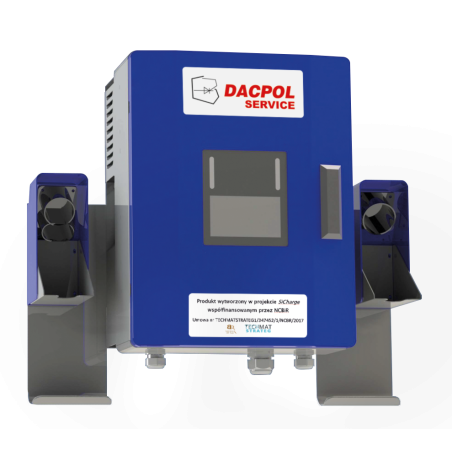

DACEVC500 - Fali Elektromos Jármű Töltőállomás

DACEVC500 - WALL CHARGING STATION FOR ELECTRIC VEHICLES

Compact charger DACEVC500 Wallbox type allows charging electric vehicles with direct current through CCS or CHAdeMO connectors. The charger is equipped with an RFID reader, a 7-inch touchscreen display, and supports OCPP communication protocol version 1.6. Optionally, it can be equipped with a GSM modem.

Main features

  • Fast charging with direct current for compatible electric vehicles
  • DC charging power up to 20 kW
  • Support for two DC charging standards: CCS and CHAdeMO
  • Compliance with OCPP 1.6 communication protocol
  • Active input stage ensuring a low THD current network factor
  • High-contrast 7” touchscreen panel
  • Compact dimensions
  • Easy installation

Application

DACEVC500 charger is designed for charging electric vehicles, compatible with CCS and CHAdeMO charging standards. Its compact dimensions, low weight, and automatic control make it suitable for commercial applications, public use in parking lots, as well as on private properties. The charger is designed for wall or pole mounting.

Technical data

Fast charging with DC Number of charging points 2
Number of simultaneously supported charging points 1
Power of each charging point 20 kW
Type and quantity of DC plugs CCS: 1, CHAdeMO: 1
DC charging standards ISO-15118, DIN 70121, CHAdeMO
Charging current 8 - 62 A
Charging voltage 50 - 500 VDC
Charging cable length 3.5 m
Charging authorization RFID card, PIN code
User communication 7” TFT touchscreen panel
Communication protocol OCPP 1.6 JSON
Station power supply Voltage 3 x 400 V, 50 Hz
Network system TN-C, TN-S, TN-C-S, others on request
Efficiency up to 95%
Protection degree IP 55
Dimensions and weight Device dimensions (height x width x depth) 699 x 500 x 341 mm
Dimensions with brackets (height x width x depth) 763 x 864 x 363 mm
Weight 65kg without charging cables

Product manufactured in the SiCharge project co-financed by NCBiR, project number TECHMATSTRATEG1/347452/1/NCBR/2017.
