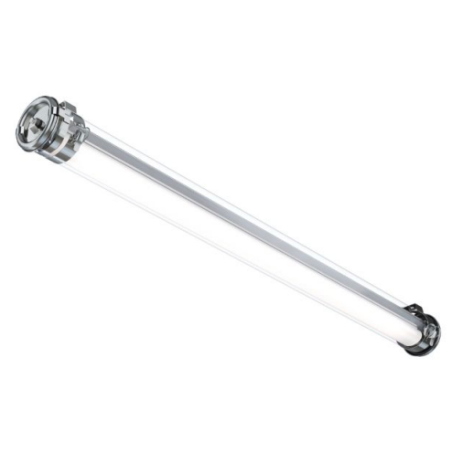

BOYLE Xtrem 19853020
BOYLE Xtrem 19853020

A fényképek csak tájékoztató jellegűek. Lásd a termék specifikációit

Kérjük, használjon latin karaktereket

Gyártó: Sammode

BOYLE Xtrem 19853020

  • 19853020
  • Średnica
  • Zasilanie
  • Strumień świetlny


  • Cable gland

Borosilicate glass tubes ø100 and ø133 for use in extremely or highly corrosive atmospheres in ATEX zones 2, 21, and 22.

Designed for the most extreme conditions, the BOYLE luminaire is the safest solution on the market for ATEX zones 2, 21, and 22. It offers the highest levels of strength and tightness thanks to a one-piece housing that protects the electronics and is resistant to high temperatures and high-risk electrical systems. Chemical resistance is ensured by the use of reliable diffuser materials: IK07 borosilicate glass or IK10 coextruded composite. The entire luminaire is easy to disassemble and repair, further contributing to its exceptional durability.

Options

Cable input
Type Diameter range Material Code
1 cable gland Ø8–13 mm Polyamide 113
Ø10–15 mm Polyamide 116
Ø6–14 mm Nickel-plated brass 113LN
2 glands (1 plugged) Ø8–13 mm Polyamide 213
Ø10–15 mm Polyamide 216
Ø6–14 mm Nickel-plated brass 213LN
Mounting brackets
Description Code
Reinforced mounting bands BRS
Reinforced ties with HSHC screw BRV
3000K
Color temperature
Temperature Code
830
4000K 840
Lighting Management
Function Code
DALI Dimming Electronic Control RD
Emergency Lighting
Function
1-hour autonomous emergency lighting with a long-life LiFePO₄ battery
(for luminaire length ≥ 995 mm), Tmax = 30°C
Materials
Material description Code
Polycarbonate casing PO
Highly chemically resistant PC/PMMA housing POME
304L stainless steel end caps and mounting brackets –
316L stainless steel end caps and mounting brackets MR

Specification

Technical features
Parameter Description
Light Source High-efficiency, replaceable LED module (CRI>80, 3 SDCM) 70,000 h L80/B10 at maximum operating temperature
No photobiological hazard: None (RG0)
Optics Special diffuser optics with a satin finish
Thermal Management Aluminum Heatsink
Power Supply (Control Gear) Highly reliable DC power supply, mechanically and thermally reinforced
Surge resistance: 320 V AC for 48 hours
Supports surges up to 4 kV
Compatible with TN, TT, and IT networks without restrictions
Compatible with central power supplies
Power Supply Voltage 198–264 V, 0/50/60 Hz
Electrical Protection Class Class I
Operating Temperature –20°C to +50°C
Easy installation and maintenance
Element Description
Connection With ATEX polyamide cable gland for cables Ø8–13 mm
Version with 1 gland: 3 x 2.5 mm² connector (detachable)
Version with 2 glands: 5 x 2.5 mm² connector (double, detachable)
Mounting Mounting with 2 steel bands with adjustable spacing and 360° rotation
LED Maintenance Easily replaceable LED modules and power supply
Can be opened safely in an explosive environment (off-load)
Seals
Materials
Element Description
Casing Borosilicate-glass
Caps and bands 304L stainless steel
Peroxide-cured EPDM
Construction One-piece housing with high mechanical and chemical resistance
Long-lasting tightness thanks to axial assembly with seal
Standards and resistances
Parameter Value
ATEX / IECEx IEC 60079-0, IEC 60079-15, IEC 60079-31
Marking II 3G Ex ec IIC T4 Gc – II 2D Ex tb IIIC T70°C Db IP66/IP68
Tightness Degree IP66, IP68, IP69K
Impact resistance (IK) IK07
Fire resistance Non-flammable material
Vibration resistance Meets the requirements of EN 60598-1 (tested according to IEC 60068-2-6)
Kevésbé
