Gyártó: Sammode

FUMAT 19890150

  • 19890150
  • Średnica
  • Zasilanie
  • Strumień świetlny


  • Cable gland

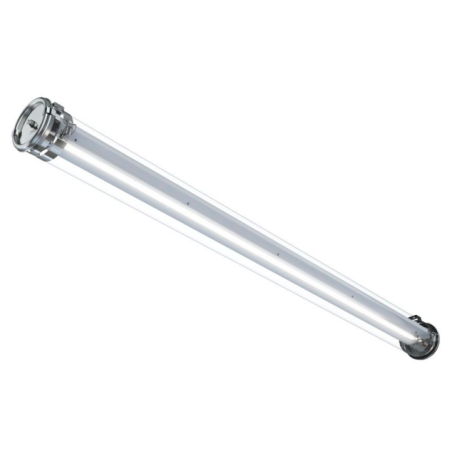

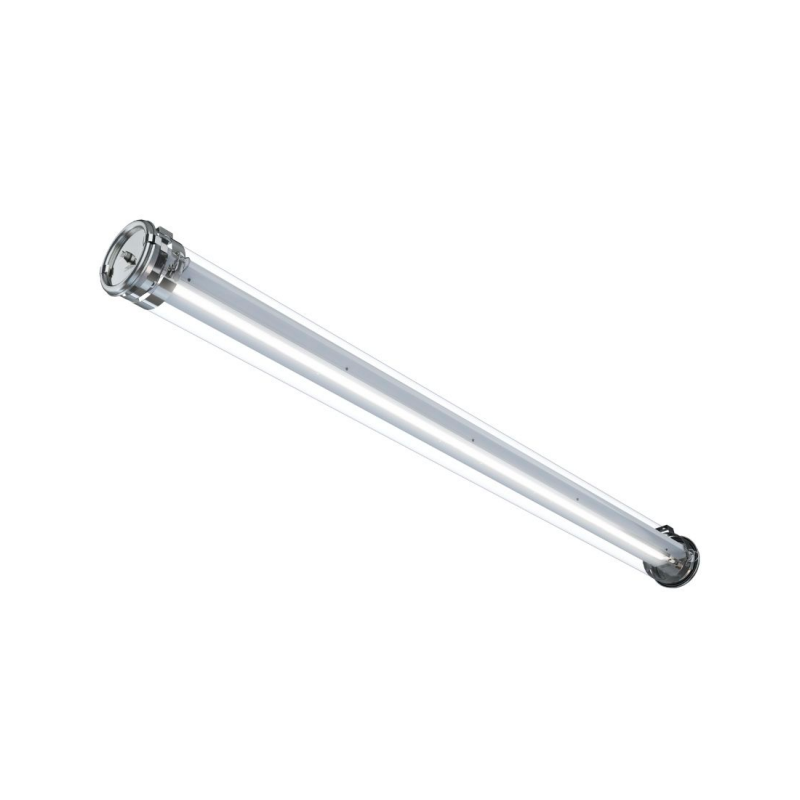

ø133 tube for high spaces in ATEX zones 2, 21, and 22 atmospheres

Lightweight yet robust, FUMAT is the ideal alternative to large and expensive ATEX floodlights. Guaranteed for 8 years, even when operated at 50°C, 24/7, it features a reliable, long-life LED module and focused optics adapted to high altitudes. Its weight has been significantly reduced thanks to the use of appropriate ATEX protection modes. Very easy to install – like every Sammode luminaire – it is completely sealed, 100% demountable, and easy to repair. FUMAT: the solution for high-altitude explosive atmospheres.

Cable Entry
Type Diameter Range Material Code
1 cable gland Ø8–13 mm Polyamide 113
Ø10–15 mm Polyamide 116
Ø6–14 mm Nickel-plated brass 113LN
2 glands (1 plugged) Ø8–13 mm Polyamide 213
Ø10–15 mm Polyamide 216
Ø6–14 mm Nickel-plated brass 213LN
Mounting brackets
Description Code
Reinforced mounting bands BRS
Reinforced ties with HSHC screw BRV
3000K
Color temperature
Temperature Code
830
4000K 840
Lighting Management
Function Code
DALI 2 Dimming Electronic Control RD
Materials
Material description Code
Polycarbonate casing PO
Highly chemically resistant PC/PMMA housing POME
304L stainless steel end caps and mounting brackets –
316L stainless steel end caps and mounting brackets MR

Specification

Technical features
Parameter Description
Light Source High-efficiency, replaceable LED module (CRI>80, 3 SDCM)
70,000 h L80/B10 at max. operating temperature
Optics Intensive linear (elliptical) lens, designed for high spaces
Thermal Management Aluminum heatsink
Power supply (Control gear) Highly reliable DC power supply, mechanically and thermally reinforced
Overload resistance: 320 V AC, 48 h
Supports surges < 4 kV
Compatible with TN, TT, IT
Compatible with central power supply
Supply voltage 198–264 V, 0/50/60 Hz
Electrical protection class Class I
Operating temperature range –20°C to +50°C
Easy installation and maintenance
Element Description
Connection Z ATEX cable gland (polyamide) for cables Ø8–13 mm
Version with 1 gland: 3 x 2.5 mm² connector (detachable)
Version with 2 glands: 5 x 2.5 mm² connector (double, detachable)
Mounting Mounting with 2 steel bands with adjustable spacing and 360° rotation
LED maintenance Easily replaceable LED modules and power supply
Can be opened without voltage in explosive atmospheres
Materials
Element left;">Description
Housing Special polycarbonate resistant to UV radiation, solvents, hydrocarbons, and cleaning agents thanks to coextrusion with PMMA
End caps and clamps 304L stainless steel
Seals Peroxide-cured EPDM
Construction One-piece housing with high mechanical and chemical resistance
Long-lasting tightness thanks to axial screwing
Norms and resistances
Parameter Value
ATEX / IECEx IEC 60079-0, IEC 60079-15, IEC 60079-31
Marking II 3G Ex ec IIC T4 Gc – II 2D Ex tb IIIC T70°C Db IP66/IP68
Waterproofness IP66, IP68, IP69K
Impact resistance IK10
Fire resistance 650°C
Vibration resistance Meets the requirements of EN 60598-1 (tested according to IEC 60068-2-6)
