Gyártó: ALPER

Alper-012 foil etched silicone heaters

  • Alper-012

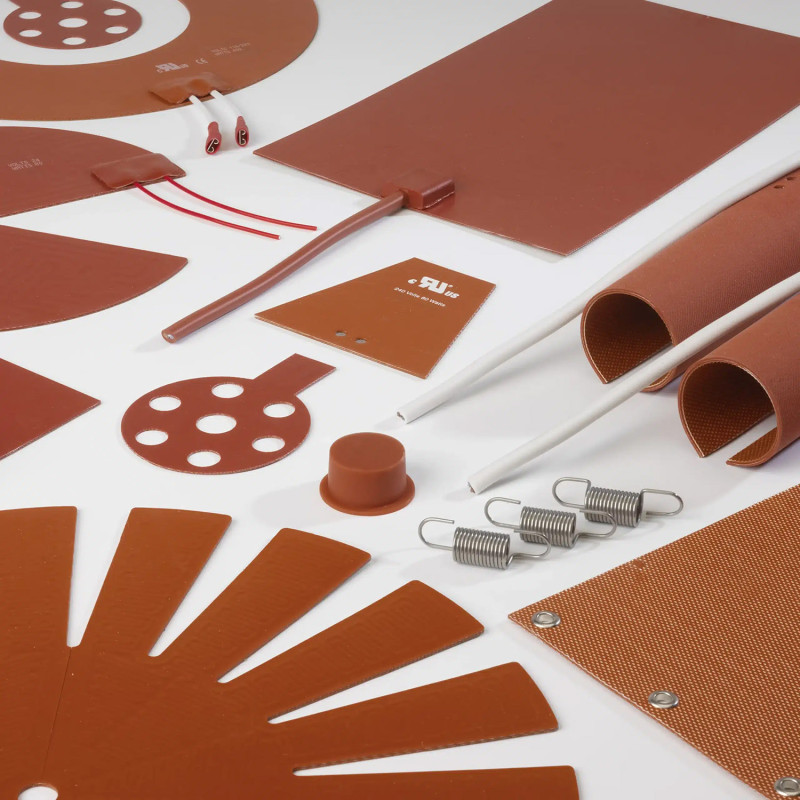

Foil-Etched Silicone Heaters

Alper silicone heaters are manufactured using chemical etching, which minimizes the heating element thickness (min. 0.8 mm). Etched silicone heaters reach temperatures up to 200°C, with peak temperatures reaching up to 230°C. The properties of silicone make it ideal for use in the hospitality sector and in small household appliances such as dishwashers, hotplates, kettles, chocolate and ice cream machines, as well as in industry, the marine, and aviation sectors. Silicone's long-term reliability, even under extreme conditions, makes this product the best choice for the professional and medical sectors.

Features

Alper silicone heaters distribute heat evenly, and Alper's flexible technology guarantees the best performance of the products in which they are used. The minimal thickness of the heating element enables very intense heating at temperatures up to 200°C continuously and up to 230°C briefly. The silicone heater with etched foil can be supplied with holes, slots, tensioning straps, and custom modifications upon request.

Accessories

A wide selection of accessories is available, such as fixed and adjustable thermostats, probes, PT100 sensors, and probe mounting pockets. Upon request, the design can be fully customized to the technical specifications and project needs.

Technical Specifications

  • Maximum dimensions: 940 x 3000 mm (other sizes available upon request).
  • Power and supply voltages available upon request.
  • High temperature uniformity.
  • Various thermal protection options available: fuses, thermal protectors, probes, and sensors.
  • Self-adhesive surfaces with a wide range of specialized double-sided adhesives suitable for various applications are available.
  • Cables according to customer specifications.
  • Class I or II manufactured.
  • Design according to customer specifications.
  • Minimum temperature: -60 °C.
  • Maximum continuous temperature: 200 °C.
  • Maximum short-term temperature: 230 °C.
  • Manufactured in accordance with Directive 2014/35/EU.

Tests and standards

  • Tested in accordance with EN 60335-1 and EN 50106.
  • S.I. 2016 No. 1101 (Electrical Equipment (Safety) Regulations 2016).
  • BS EN 60335-1, BS EN 50106.
  • UL certificate E466385 available upon request.
  • RoHS and REACH compliant.
