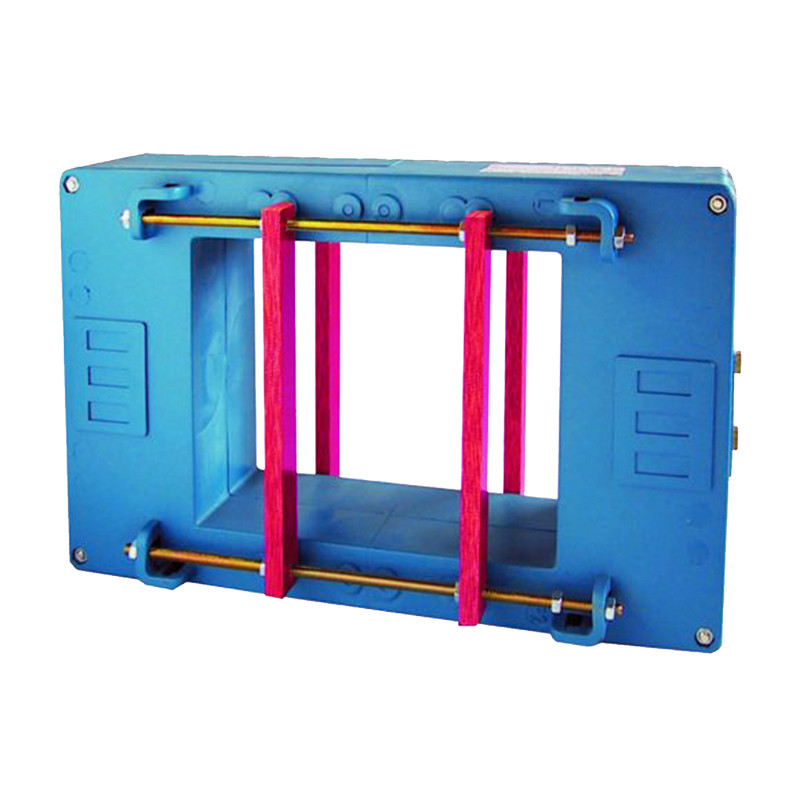

165x127mm-es sínre szerelhető TAT165 áramváltó
165x127mm-es sínre szerelhető TAT165 áramváltó

A fényképek csak tájékoztató jellegűek. Lásd a termék specifikációit

Kérjük, használjon latin karaktereket

Gyártó: FRER

165x127mm-es sínre szerelhető TAT165 áramváltó

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Class E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <70W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
1000/5 A 25 50

TAT1651K0X05
1200/5 A 30 60

TAT1651K2X05
1500/5 A 35 70

TAT1651K5X05
2000/5 A 40 80

TAT1652K0X05
2500/5 A 50 100

TAT1652K5X05
3000/5 A 70 120

TAT1653K0X05
4000/5 A 80 150

TAT1654K0X05
5000/5 A 100 180

TAT1655K0X05
6000/5 A 100 180

TAT1656K0X05
8000/5 A 100 180

TAT1658K0X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
1000/1 A 25 50

TAT1651K0X01
1200/1 A 30 60

TAT1651K2X01
1500/1 A 35 70

TAT1651K5X01
2000/1 A 40 80

TAT1652K0X01
2500/1 A 50 100

TAT1652K5X01
3000/1 A 70 120

TAT1653K0X01
4000/1 A 80 150

TAT1654K0X01
5000/1 A 100 180

TAT1655K0X01
6000/1 A 100 180

TAT1656K0X01
8000/1 A 100 180

TAT1658K0X01



SECONDARY 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
1000/5A 5 TAT1651K0J05 5 TAT1651K0Y05 1 TAT1651K0S05
1500/5A 7.5 TAT1651K5J05 7.5 TAT1651K5Y05 5 TAT1651K5S05
2000/5A 10 TAT1652K0J05 10 TAT1652K0Y05 5 TAT1652K0S05
3000/5A 20 TAT1653K0J05 20 TAT1653K0Y05 10 TAT1653K0S05
4000/5A 30 TAT1654K0J05 30 TAT1654K0Y05 20 TAT1654K0S05
5000/5A 30 TAT1655K0J05 30 TAT1655K0Y05 20 TAT1655K0S05
6000/5A 30 TAT1656K0J05 30 TAT1656K0Y05 20 TAT1656K0S05
8000/5A 30 TAT1658K0J05 30 TAT1658K0Y05 20 TAT1658K0S05



SECONDARY 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
1000/1A 5 TAT1651K0J01 5 TAT1651K0Y01 1 TAT1651K0S01
1500/1A 7.5 TAT1651K5J01 7.5 TAT1651K5Y01 5 TAT1651K5S01
2000/1A 10 TAT1652K0J01 10 TAT1652K0Y01 5 TAT1652K0S01
3000/1A 20 TAT1653K0J01 20 TAT1653K0Y01 10 TAT1653K0S01
4000/1A 30 TAT1654K0J01 30 TAT1654K0Y01 20 TAT1654K0S01
5000/1A 30 TAT1655K0J01 30 TAT1655K0Y01 20 TAT1655K0S01
6000/1A 30 TAT1656K0J01 30 TAT1656K0Y01 20 TAT1656K0S01
8000/1A 30 TAT1658K0J01 30 TAT1658K0Y01 20 TAT1658K0S01



SECONDARY 5 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
1000/5A 30 TAT1651K0K05 10 TAT1651K0L05 5 TAT1651K0M05
1200/5A 35 TAT1651K2K05 12 TAT1651K2L05 6 TAT1651K2M05
1500/5A 40 TAT1651K5K05 15 TAT1651K5L05 8 TAT1651K5M05
2000/5A 60 TAT1652K0K05 20 TAT1652K0L05 10 TAT1652K0M05
2500/5A 70 TAT1652K5K05 20 TAT1652K5L05 10 TAT1652K5M05
3000/5A 80 TAT1653K0K05 25 TAT1653K0L05 12 TAT1653K0M05
4000/5A 100 TAT1654K0K05 30 TAT1654K0L05 15 TAT1654K0M05
5000/5A 40 TAT1655K0K05 15 TAT1655K0L05 5 TAT1655K0M05
6000/5A 40 TAT1656K0K05 15 TAT1656K0L05 5 TAT1656K0M05
8000/5A 40 TAT1658K0K05 15 TAT1658K0L05 5 TAT1658K0M05



SECONDARY 1 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
1000/1A 30 TAT1651K0K01 10 TAT1651K0L01 5 TAT1651K0M01
1200/1A 35 TAT1651K2K01 12 TAT1651K2L01 6 TAT1651K2M01
1500/1A 40 TAT1651K5K01 15 TAT1651K5L01 8 TAT1651K5M01
2000/1A 60 TAT1652K0K01 20 TAT1652K0L01 10 TAT1652K0M01
2500/1A 70 TAT1652K5K01 20 TAT1652K5L01 10 TAT1652K5M01
3000/1A 80 TAT1653K0K01 25 TAT1653K0L01 12 TAT1653K0M01
4000/1A 100 TAT1654K0K01 30 TAT1654K0L01 15 TAT1654K0M01
5000/1A 40 TAT1655K0K01 15 TAT1655K0L01 5 TAT1655K0M01
6000/1A 40 TAT1656K0K01 15 TAT1656K0L01 5 TAT1656K0M01
8000/1A 40 TAT1658K0K01 15 TAT1658K0L01 5 TAT1658K0M01


Dimensions

Przekładnik prądowy TAT165 na szynę 165x127mm wymiary
