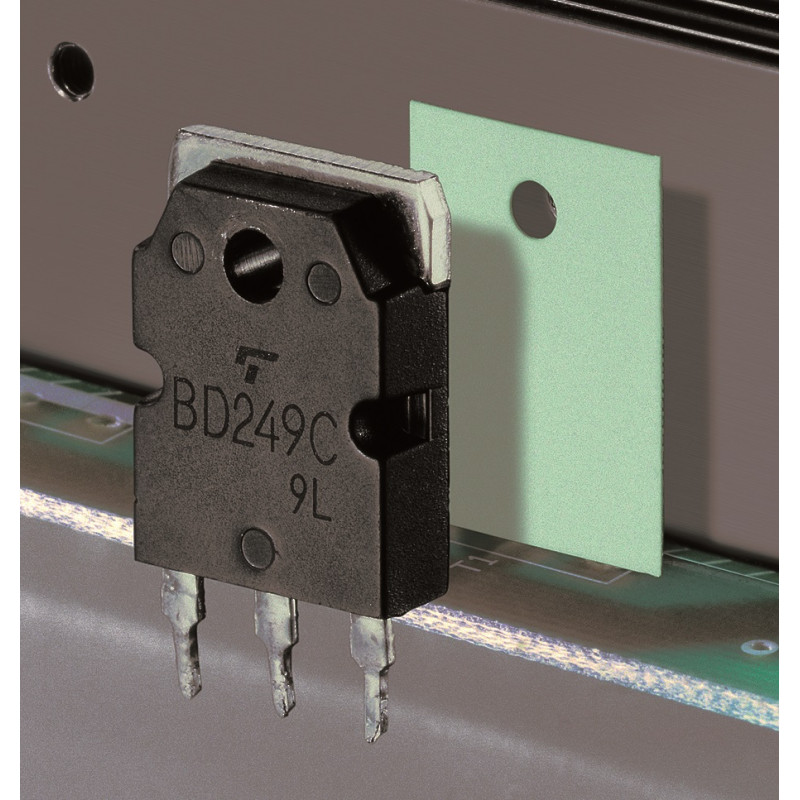

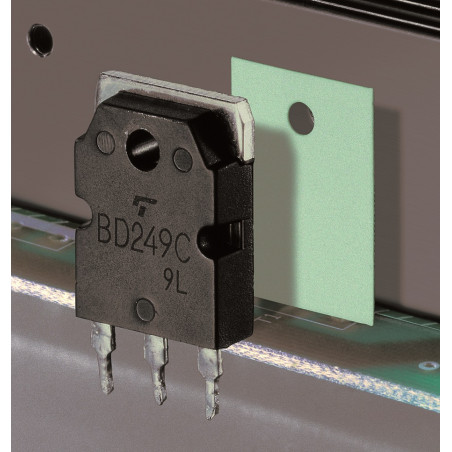

A thermally conductive silicone pad made of KERATHERM 86/37 material. It is characterized by good thermal conductivity and excellent insulation properties. The material's adhesion facilitates its positioning during assembly.
Dimensions of the TO-247 thermally conductive pad:
| Properties | Unit | |
|---|---|---|
| Color | - | Green |
| Base Material | - | Silicone |
| Thermal Resistance | K/W | 0.32 |
| Thermal Conductivity | W/mK | 1.8 |
| Breakdown Voltage | kV | 8.0 |
| Hardness | Shore 00 | 65-75 |
| Application Temperature | °C | -60 – 250 °C |
| Density | g/cm³ | 2.29 |
| Flammability Class | UL-94 | V-0 |
