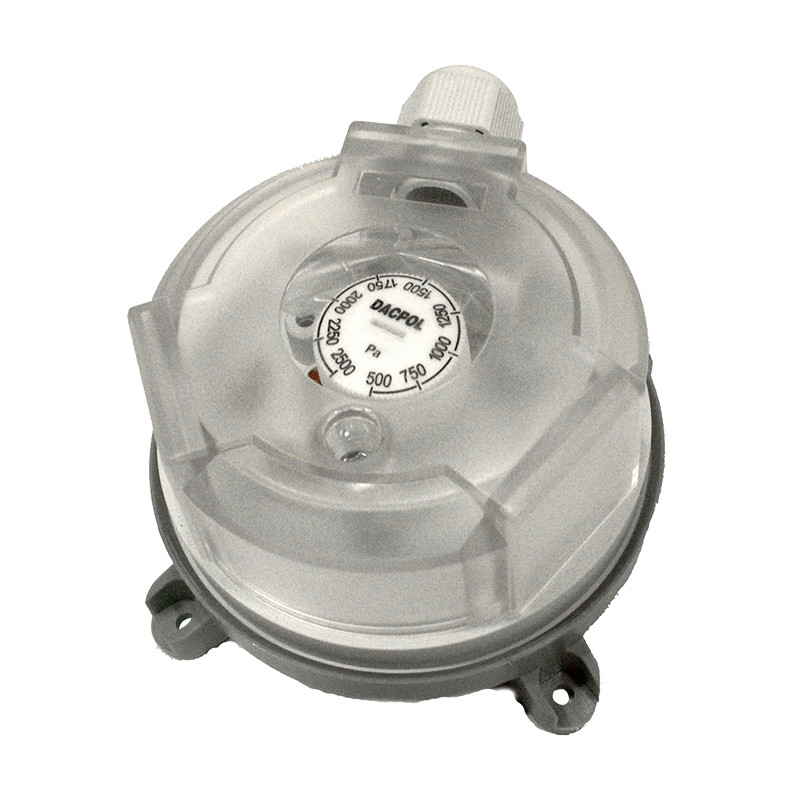

Comutator de presiune SSZ32
Comutator de presiune SSZ32

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: DACPOL

Comutator de presiune SSZ32

Pressure switch SSZ32

Features:

  • On/Off output;
  • Electrical Rating 250V AC;
  • Switching pressure to be adjusted easy on a scaled adjustment knob;
  • Static, over, underpressure and vacuum;
  • IP54 protection.

Technical Data:

Output on/off
Max. Operating Pressure 5kPa
Medium Air, non-com bustible and no-aggressive gases
Operating temp. range -40°C … 85°C
Pressure connections 2 plastic pipe connection pieces(P1 and P2), external diam eter 6.0mm; P1 f or connection to higher pressure (m arked +) P2 f or connection to lower pressure(m arked -)
Mounting position Diaphragm in an y vertical plane
Contact arrangement SPDT
Tolerance 15%
Weight 140g
Electrical rating initial < 400mΩ 1.5A (0.4A) /250 V
Protection IP54
Ordering CE


Product Number:

Type no. Adjustment range Switching differential
SSZ32-02 20-200 Pa 10 Pa
SSZ32-03 30-300 Pa 10 Pa
SSZ32-04 40-400 Pa 20 Pa
SSZ32-05 50-500 Pa 20 Pa
SSZ32-10 200-1000 Pa 100 Pa
SSZ32-25 500-2500 Pa 150 Pa



Dimensions [mm]:

Accessories:

Duct fixing kit SSZ-200

The SSZ-200 duct fixing kit includes:

  • 2 Plastic tubes with integrated m ounting plate
  • 2 meter PVC hose and 4 screws

DPST Screw terminal:

Electrical connection:
