Producător: SALTEK

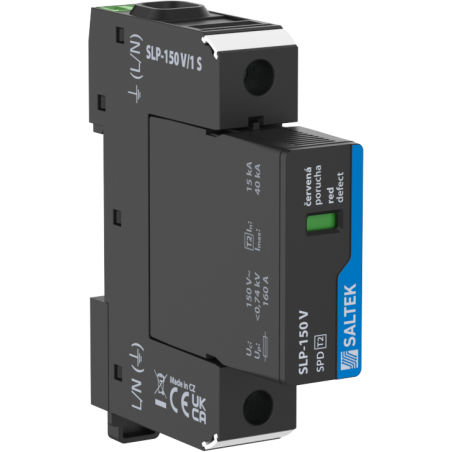

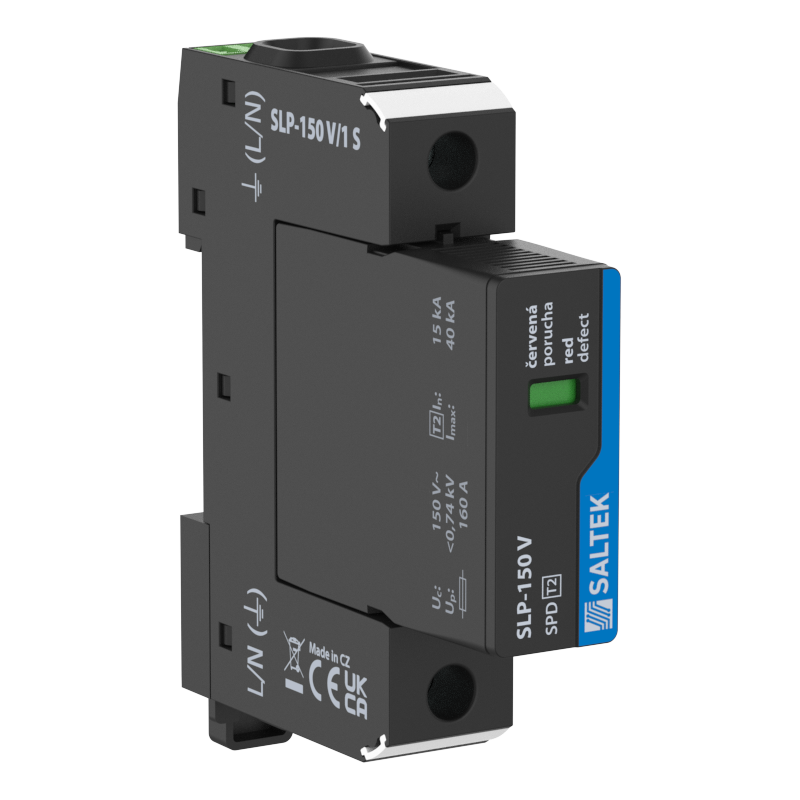

SLP-150 V/1 S - Limitator de supratensiune (SPD)

  • SLP-150 V/1 S
  • Tensiune nominală 120 V AC
  • Grad de protecție IP 20
  • Tip SPD T2
  • Tip de rețea TN
  • Indicație la distanță potential-free change-over contact
  • Tensiune maximă de funcționare 150.00 V AC
Parameter name Parameter value
Type of SPD T2
Mounting DIN rail 35 mm
Nominal voltage Un 120 V AC
Maximum operating voltage Uc 150.00 V AC
Maximum operating voltage Uc 200.00 V DC
Type of network TN
Maximum overcurrent protection 160 A gL/gG
Short-circuit current rating ISCCR 50.0 kA
Residual current IPE 0.350 mA
Nominal discharge current (8/20 µs) In 15.00 kA
Maximum discharge current (8/20 µs) Imax 40.00 kA
Voltage protection level Up 0.74 kV
Voltage protection level at 5 kA Up 0.60 kV
Response time ta 25 ns
TOV 5 s L-N 175 V
TOV characteristic (TOV 5 s) withstand
Cross-section of connected conductors solid (min) 1.00 mm2
Cross-section of connected conductors solid (max) 35.00 mm2
Cross-section of connected conductors stranded (min) 1.00 mm2
Cross-section of connected conductors stranded (max) 25.00 mm2
Cross-section of remote indication conductors solid (max) 1.5 mm2
Cross-section of remote indication conductors stranded (max) 1.5 mm2
Fault indication red indication field
Remote indication potential-free change-over contact
Remote indication contacts 250V/0,5A AC,250V/0,1A DC
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000941
Plug module SLP-150 V/0
Customs tariff number 85363030
EAN 8595090551867
