Producător: SALTEK

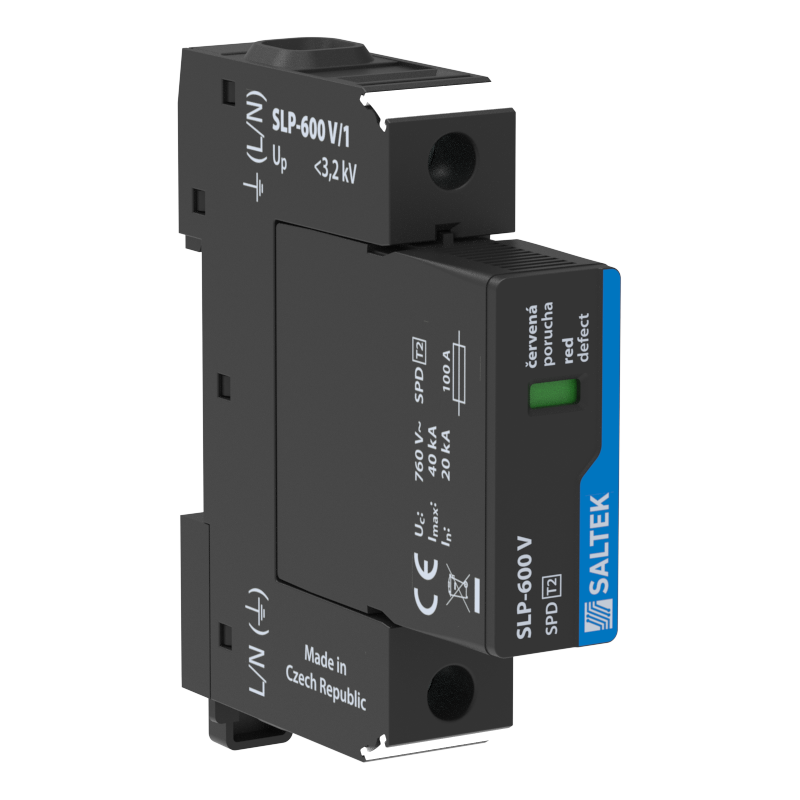

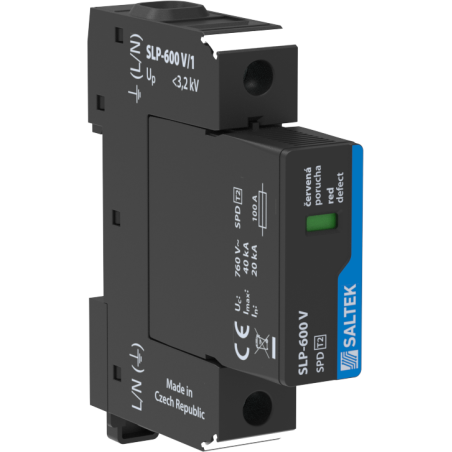

SLP-600 V/1 - Limitator de supratensiune (SPD)

  • SLP-600 V/1
  • Tensiune nominală 230,00–690,00 V AC
  • Grad de protecție IP 20
  • Tip SPD T2
  • Tip de rețea TN
  • Tensiune maximă de funcționare 760.00 V AC
Parameter name Parameter value
Type of SPD T2
Mounting DIN rail 35 mm
Nominal voltage Un 230,00–690,00 V AC
Maximum operating voltage Uc 760.00 V AC
Maximum operating voltage of varistor 880 V AC
Type of network TN
Maximum overcurrent protection 100 A gL/gG
Short-circuit current rating ISCCR 25.0 kA
Nominal discharge current (8/20 µs) In 20.00 kA
Maximum discharge current (8/20 µs) Imax 40.00 kA
Voltage protection level Up 3.20 kV
Voltage protection level at 5 kA Up 2.70 kV
Response time ta 25 ns
Cross-section of connected conductors solid (min) 1.00 mm2
Cross-section of connected conductors solid (max) 35.00 mm2
Cross-section of connected conductors stranded (min) 1.00 mm2
Cross-section of connected conductors stranded (max) 25.00 mm2
Fault indication red indication field
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000941
Plug module SLP-600 V/0
Customs tariff number 85363030
EAN 8595090533016
