Producător: DetasUltra

DES L2 - Rame de intrare pentru cabluri

  • 1731010002
  • Tip de produs Presetupe modulare
  • Gaură 40 x 18

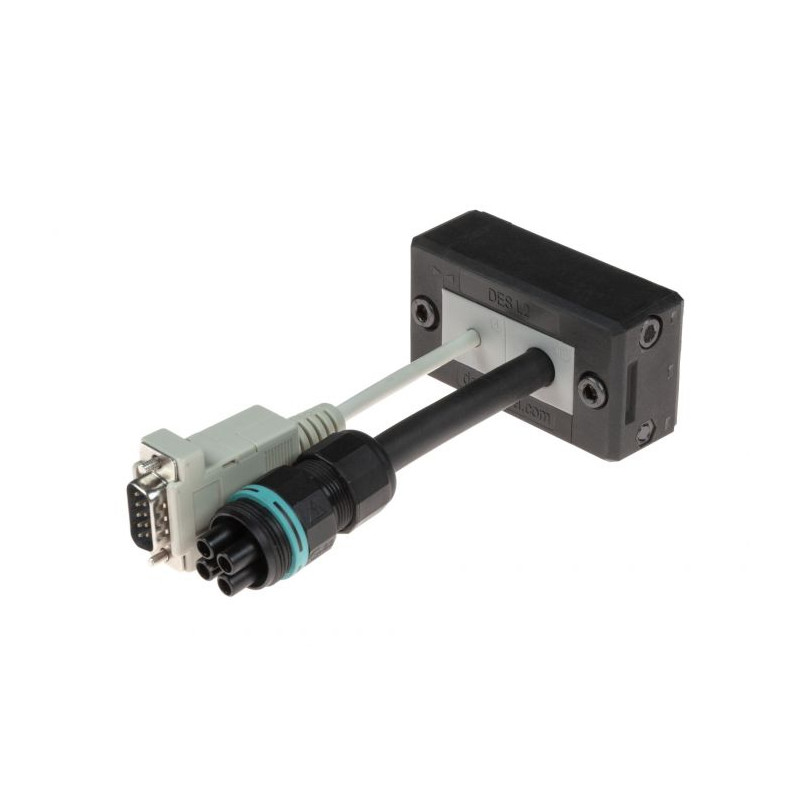

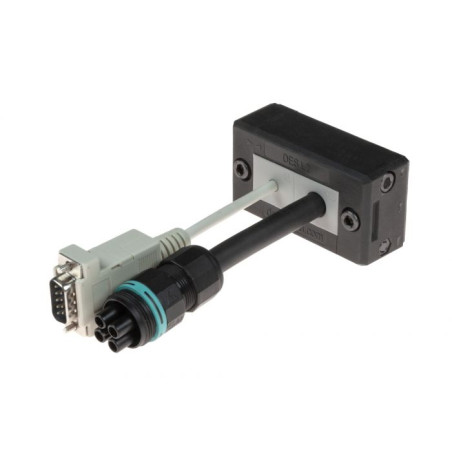

The divisible DES L2 frame allows the routingof headed and unheaded cables with diameters from 2 to 17 mm due to the various grommets available. The side closure of the frame allows strain relief, dust and water protection.

  • For 2 small SPP inserts
  • Frame screws in AISI304 Stainless Steel
  • IP66 certified, Nema 4X* with any combination of grommets
  • Strain relief according to EN 62444
  • Robust construction IK10
  • Overmolded gasket acc.to ULV94-V0
  • ATEX version on request
  • Threaded inserts version on request

*4X for indoor use only

  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES L2 1731010002 40 x 18
DES L2A 1731310002 40 x 18
