Producător: DetasUltra

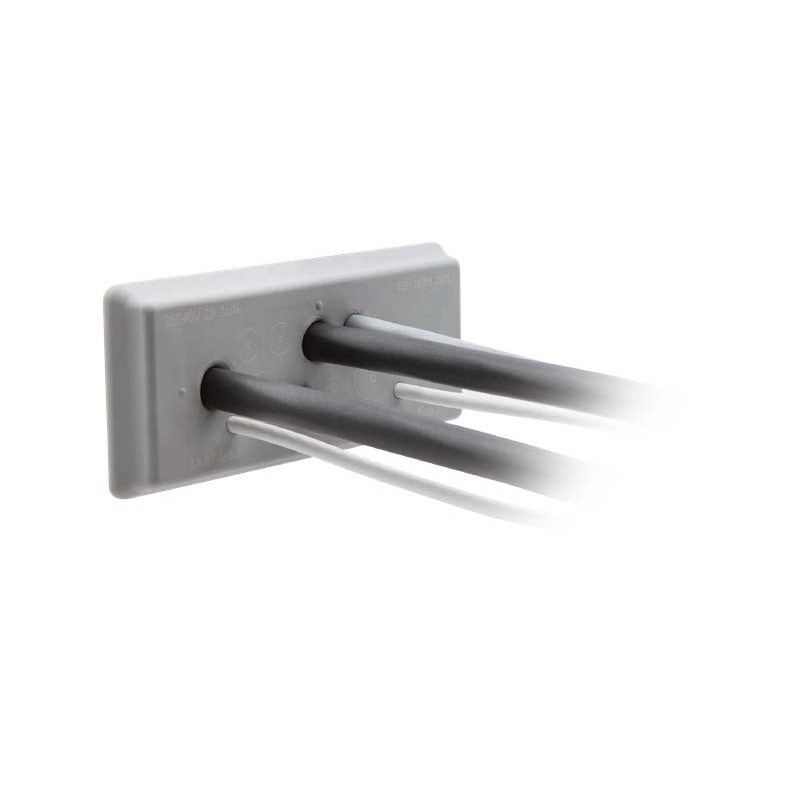

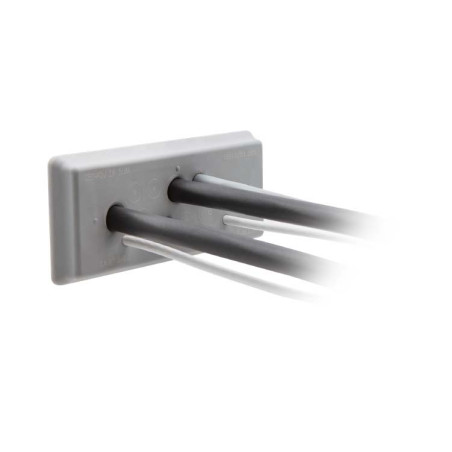

DES PDM 24 ZIP 13/G - Plăci de intrare pentru cabluri

  • 1732026013
  • Tip de produs Presetupe
  • Dimensiuni 150 x 32

DES PDM 24 ZIP entry plates are used for cables without connectors and feature an elegant design with rounded corners that prevent the accumulation of dirt and facilitate cleaning

  • Fissaggio da interno quadro con inserti filettati per viti M5
  • For large number cables without connectors
  • High strain relief thanks to the double membrane
  • Cost efficient solution
  • Wall thickness for snap fastening 1.5-2mm
  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +105°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PDM 24 ZIP 13/G 1732026013 112 x 18 150 x 32
2 - 2,8 / 6,5
6 - 4,6 / 10,2
5 - 8,6 / 16,2
DES PDM 24 ZIP 25/G 1732026025 112 x 36 150 x 32
12 - 2,8 / 6,5
7 - 4,4 / 9,7
6 - 6,8 / 12
DES PDM 24 ZIP 32/G 1732026032 112 x 36 150 x 32
21 - 2,8 / 6,5
8 - 4,6 / 10,2
6 - 6,8 / 12
