Producător: DetasUltra

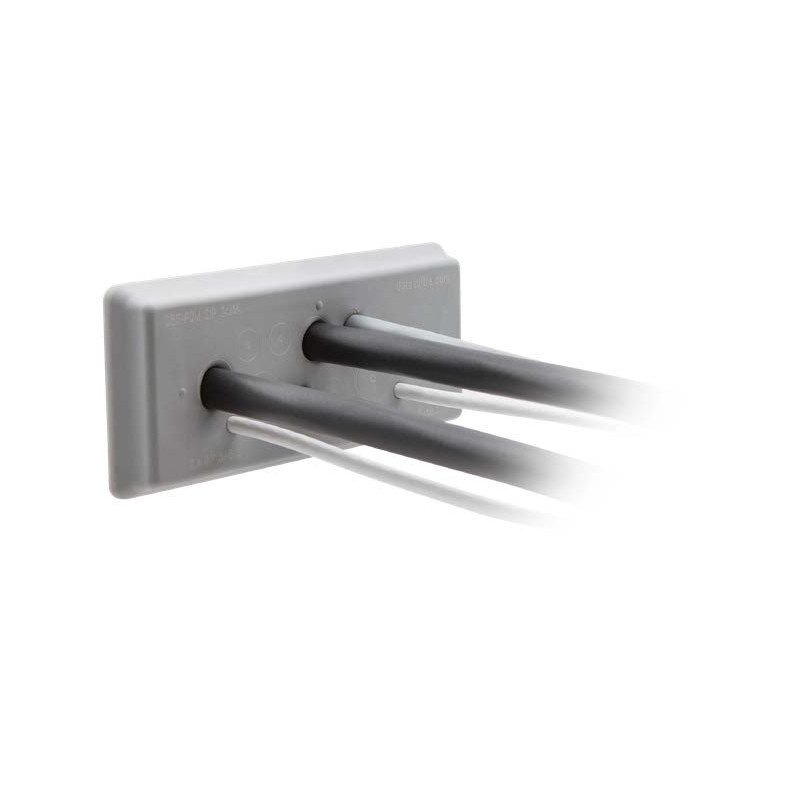

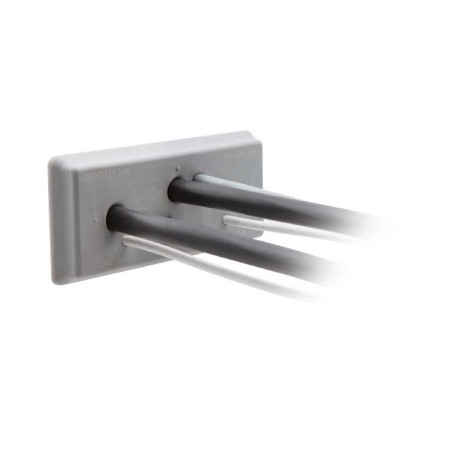

DES PDM 24 ZIP 25/G - Plăci de intrare pentru cabluri

  • 1732026025
  • Dimensiuni 150 x 32
  • Tip de produs Przepusty kablowe

DES PDM 24 ZIP entry plates are used for cables without connectors and feature an elegant design with rounded corners that prevent the accumulation of dirt and facilitate cleaning

  • Fissaggio da interno quadro con inserti filettati per viti M5
  • For large number cables without connectors
  • High strain relief thanks to the double membrane
  • Cost efficient solution
  • Wall thickness for snap fastening 1.5-2mm
  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +105°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PDM 24 ZIP 13/G 1732026013 112 x 18 150 x 32
2 - 2,8 / 6,5
6 - 4,6 / 10,2
5 - 8,6 / 16,2
DES PDM 24 ZIP 25/G 1732026025 112 x 36 150 x 32
12 - 2,8 / 6,5
7 - 4,4 / 9,7
6 - 6,8 / 12
DES PDM 24 ZIP 32/G 1732026032 112 x 36 150 x 32
21 - 2,8 / 6,5
8 - 4,6 / 10,2
6 - 6,8 / 12
