Producător: DetasUltra

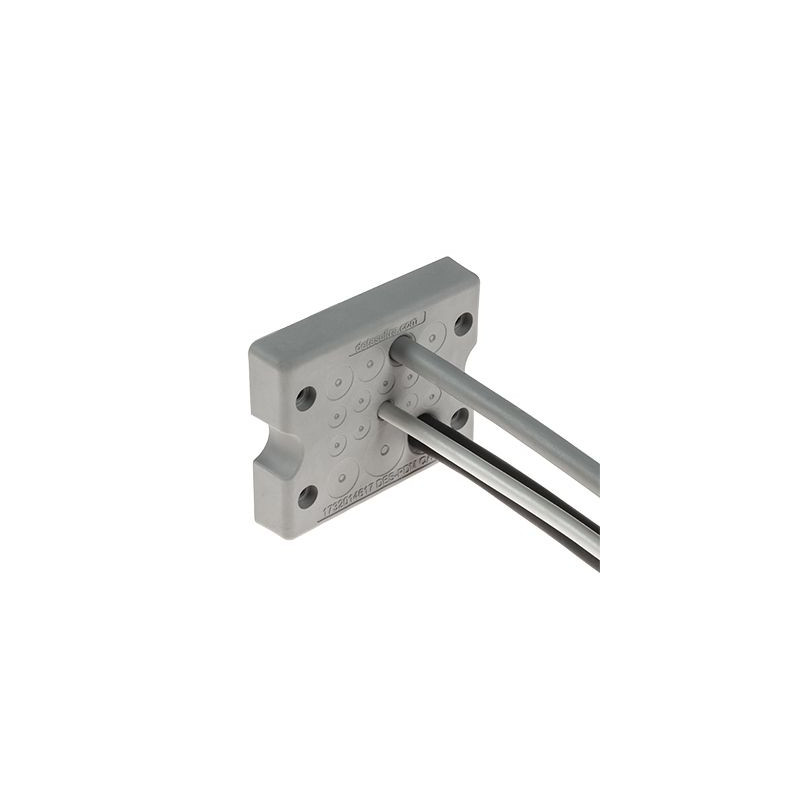

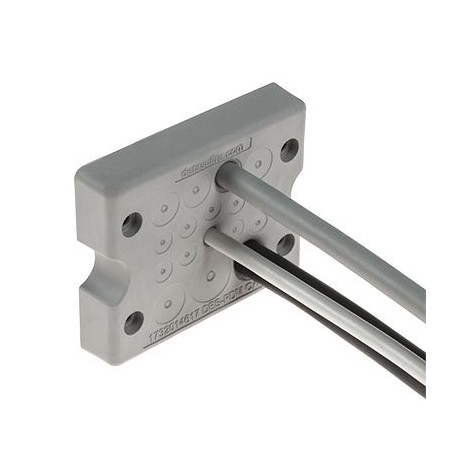

DES PDM Q17BA - Plăci de intrare pentru cabluri

  • 1732315618
  • Dimensiuni 74 x 60
  • Tip de produs Przepusty kablowe

DES PDM Q cable entry plates are an economical and reliable alternative to standard industrial cable glands.

  • For large number cables without connectors
  • High strain relief thanks to the double membrane
  • Cost efficient solution
  • High water protection (IP65-66)
  • NEMA 4X certified*

*4X for indoor use only

  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +105°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PDM Q13G 1732014613 46 x 46 74 x 60 8 - 2,8 / 6,5
4-4,6 / 10,2
1 - 14,5 / 22
DES PDM Q17G 1732014617 46 x 46 74 x 60 10 - 2,8 / 6,5
4 - 4,6 / 10,2
2 - 6,8 / 12
1 - 8,6 / 16,2
DES PDM Q25G 1732014625 46 x 46 74 x 60 25 - 2,8 / 6,5
DES PDM Q13B 1732015614 46 x 46 74 x 60 8 - 2,8 / 6,5
4 - 4,6 / 10,2
1 - 14,5 / 22
DES PDM Q17B 1732015618 46 x 46 74 x 60 10 - 2,8 / 6,5
4 - 4,6 / 10,2
2 - 6,8 / 12
1 - 8,6 / 16,2
DES PDM Q25B 1732015626 46 x 46 74 x 60 25 - 2,8 / 6,5
DES PDM Q13GA 1732314613 46 x 46 74 x 60 8 - 2,8 / 6,5
4-4,6 / 10,2
1 - 14,5 / 22
DES PDM Q17GA 1732314617 46 x 46 74 x 60 10 - 2,8 / 6,5
4 - 4,6 / 10,2
2 - 6,8 / 12
1 - 8,6 / 16,2
DES PDM Q25GA 1732314625 46 x 46 74 x 60 25 - 2,8 / 6,5
DES PDM Q13BA 1732315614 46 x 46 74 x 60 8 - 2,8 / 6,5
4 - 4,6 / 10,2
1 - 14,5 / 22
DES PDM Q17BA 1732315618 46 x 46 74 x 60 10 - 2,8 / 6,5
4 - 4,6 / 10,2
2 - 6,8 / 12
1 - 8,6 / 16,2
DES PDM Q25BA 1732315626 46 x 46 74 x 60 25 - 2,8 / 6,5
