Producător: DetasUltra

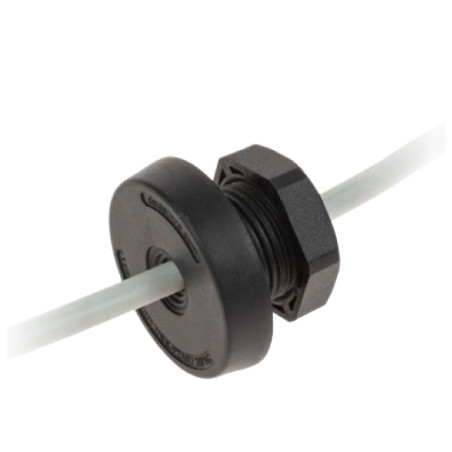

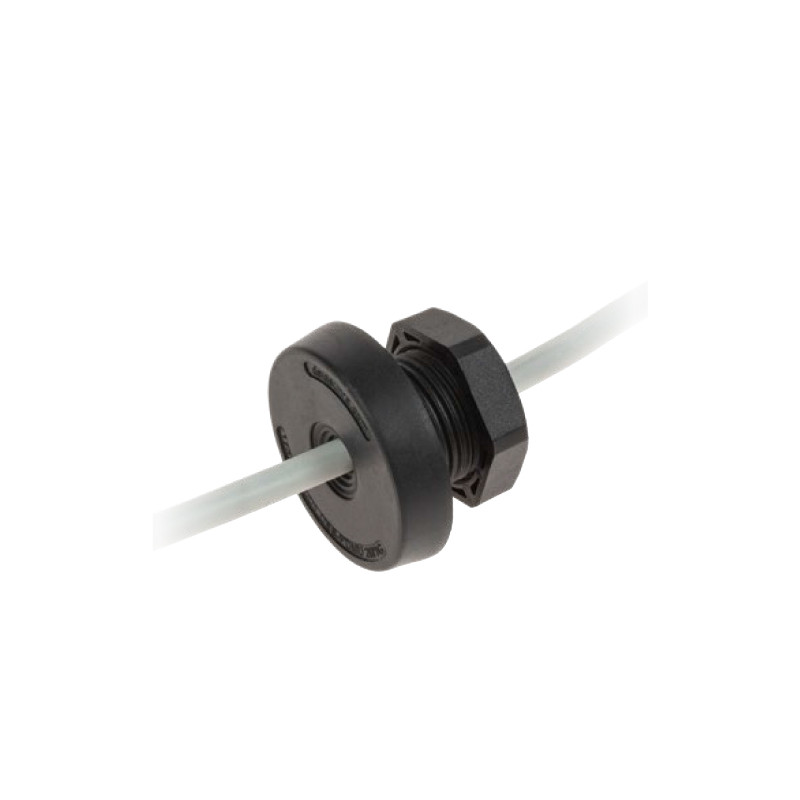

DES PDMU 25B - Plăci de intrare pentru cabluri

  • 1732031125
  • Dimensiuni 40
  • Fir M25
  • Tip de produs Przepusty kablowe
  • 1 - max. 16 ∅

DES PDMU Round cable entry plates use metric hole openings and are an economical and reliable alternative to standard industrial cable glands where ease of assembly and significant space savings are required.

  • Metric cable gland
  • High strain relief thanks to the double membrane
  • Cost efficient solution
  • ATEX version on request
  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +110°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions [mm] Cut-out Dimensions [mm] Thread No. cables - Ø cables [mm]
DES PDMU 20G 1732030120 20,5 36 M20 1 - max. 10,5
DES PDMU 25G 1732030125 25,5 40 M25 1 - max. 16
DES PDMU 32G 1732030132 32,5 46 M32 1 - max. 22
DES PDMU 50G 1732030150 50,5 64 M50 1 - max. 36
DES PDMU 20B 1732031120 20,5 36 M20 1 - max. 10,5
DES PDMU 25B 1732031125 25,5 40 M25 1 - max. 16
DES PDMU 32B 1732031132 32,5 46 M32 1 - max. 22
DES PDMU 50B 1732031150 50,5 64 M50 1 - max. 36
DES PDMU 20GA 1732330120 20,5 36 M20 1 - max. 10,5
DES PDMU 25GA 1732330125 25,5 40 M25 1 - max. 16
DES PDMU 32GA 1732330132 32,5 46 M32 1 - max. 22
DES PDMU 20BA 1732331120 20,5 36 M20 1 - max. 10,5
DES PDMU 25BA 1732331125 25,5 40 M25 1 - max. 16
DES PDMU 32BA 1732331131 32,5 46 M32 1 - max. 22
