Producător: DetasUltra

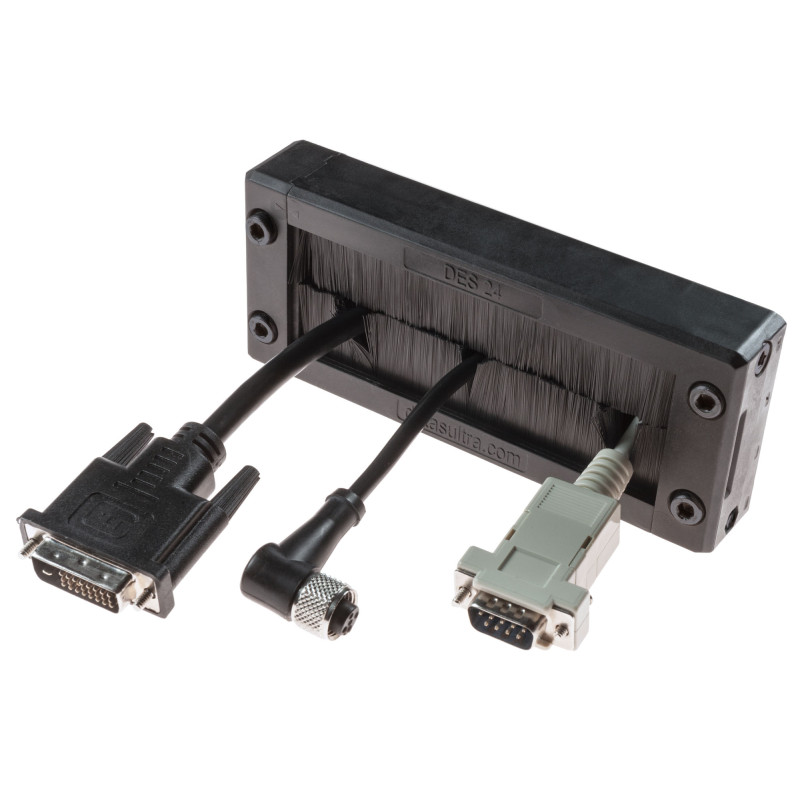

DES ZZ Q - Intrare cablu cu perii

  • 1731060208
  • Gaură 40 x 39
  • Tip de produs Szczotkowe przepusty kablowe

The DES ZZ series consists of a divisible frame in which two rows of brushes are installed. This providesexcellent dust protection and greater mechanical strength than single-brush solutions.

  • Double brush frame for cables with and without connectors.
  • Cost efficient solution
  • Eight dimensions (24, 16, 10, Q, L5, L4, L3 and L2)
  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -25°C... +80°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES ZZ L2 1731060202 40 x 18
DES ZZ L3 1731060203 63 x 18
DES ZZ L4 1731060204 86 x 18
DES ZZ L5 1731060205 108 x 18
DES ZZ Q 1731060208 40 x 39
DES ZZ 10 1731060210 63 x 39
DES ZZ 16 1731060216 86 x 39
DES ZZ 24 1731060224 112 x 39
