Producător: DetasUltra

IFP 16G - Inserții cu ochiuri

  • 1732070008
  • Dimensiuni 20,5 x 16,0 x 19,5
  • Gaură 16,0 - 19,0
  • Tip de produs Zaślepki do przepustów

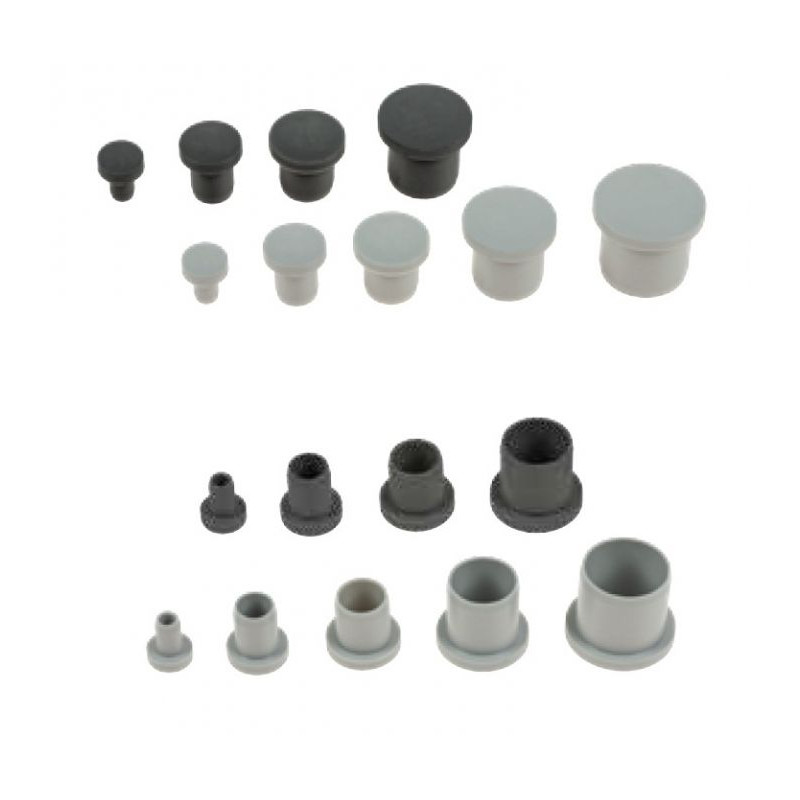

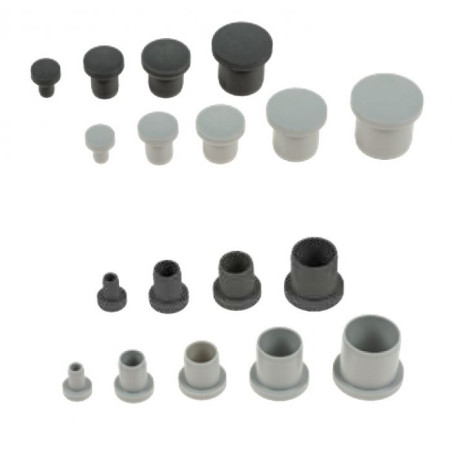

The IFP inserts are designed to be installed in Entry Plates of Group 2 or in SPG M grommets, with diameters from 4.5 to 22.5 mm.

  • Inserts for hole diameters from 4.5mm to 22.5mm
  • Material: PA6
  • Flammability: UL94-HB
  • Temperature: -30°C... +100°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions A Size B Size C Hole Ø
IFP 5G 1732070002 5,5 12,5 10,0 4,5 - 8,0
IFP 9G 1732070004 9,5 16,0 13,5 8,0 - 12,0
IFP 12G 1732070006 16,5 12,0 16,5 12,0 - 16,0
IFP 16G 1732070008 20,5 16,0 19,5 16,0 - 19,0
IFP 20G 1732070010 20,0 21,5 24,5 20,0 - 22,5
IFP 5B 17320700125,5 12,5 10,0 4,5 - 8,0
IFP 9B 1732070014 9,5 16,0 13,5 8,0 - 12,0
IFP 12B 1732070016 12,0 16,5 16,5 12,0 - 16,0
IFP 16B 1732070018 16,0 19,5 20,5 16,0 - 19,0

Trimite o cerere

Sunteți interesat de acest produs? Aveți nevoie de informații suplimentare sau de prețuri individuale?

Contactează-ne
CERETI PRODUSUL close
Vă mulțumim că ați trimis mesajul dvs. Vom răspunde cât mai curând posibil.
CERETI PRODUSUL close
Naviga

Adaugă la lista de dorințe

trebuie să fii logat

  • Dimensiuni 20,5 x 16,0 x 19,5
  • Gaură 16,0 - 19,0
  • Tip de produs Zaślepki do przepustów

The IFP inserts are designed to be installed in Entry Plates of Group 2 or in SPG M grommets, with diameters from 4.5 to 22.5 mm.

  • Inserts for hole diameters from 4.5mm to 22.5mm
  • Material: PA6
  • Flammability: UL94-HB
  • Temperature: -30°C... +100°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions A Size B Size C Hole Ø
IFP 5G 1732070002 5,5 12,5 10,0 4,5 - 8,0
IFP 9G 1732070004 9,5 16,0 13,5 8,0 - 12,0
IFP 12G 1732070006 16,5 12,0 16,5 12,0 - 16,0
IFP 16G 1732070008 20,5 16,0 19,5 16,0 - 19,0
IFP 20G 1732070010 20,0 21,5 24,5 20,0 - 22,5
IFP 5B 17320700125,5 12,5 10,0 4,5 - 8,0
IFP 9B 1732070014 9,5 16,0 13,5 8,0 - 12,0
IFP 12B 1732070016 12,0 16,5 16,5 12,0 - 16,0
IFP 16B 1732070018 16,0 19,5 20,5 16,0 - 19,0
