Producător: DetasUltra

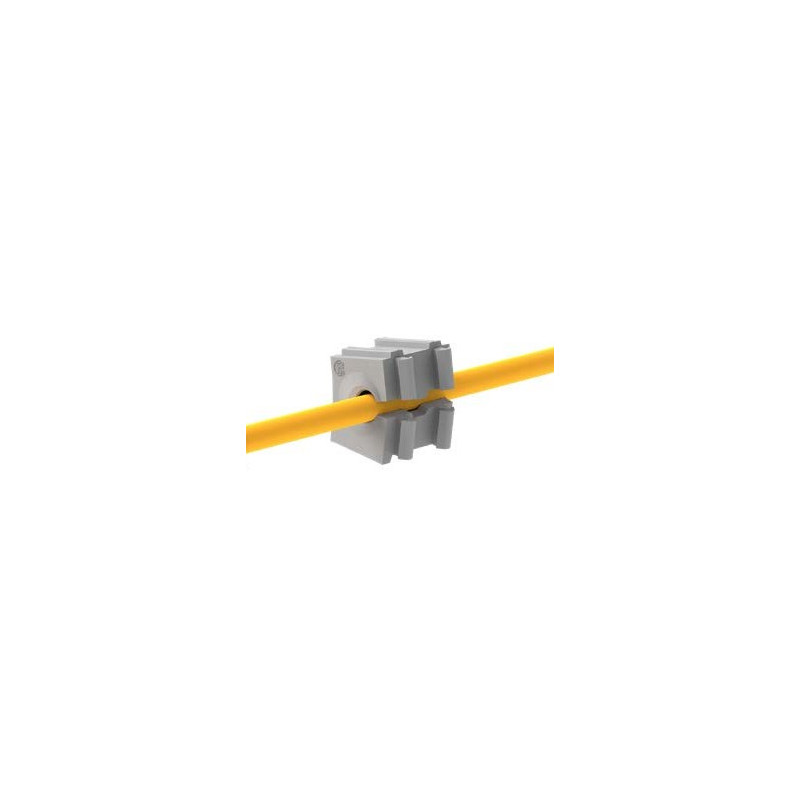

SPP R2B - Ojelii

  • 1731021212
  • Tip de produs Module de etanșare
  • 6 ~ 9

Extended-range openable grommets in the SPP R family allow the use of cables with or without connectors.

  • Extended range grommets for cables with or without connectors for diameters from 3 to 15 mm
  • IP66
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Cable Ø max. [mm]
SPP R1G 1731021200 3 ~ 6
SPP R2G 1731021202 6 ~ 9
SPP R3G 1731021204 9 ~ 12
SPP R4G 1731021206 12 ~ 15
SPP R1B 1731021210 3 ~ 6
SPP R2B 1731021212 6 ~ 9
SPP R3B 1731021214 9 ~ 12
SPP R4B 1731021216 12 ~ 15
