Producător: ERI

Relee monofazate și trifazate cu ieșire triac

Technical Data

Isolation Voltage 2500VAC
Switching Method zero-crossing
Enclosure IP20
Snubber built-in
Operating Frequency: 47-63Hz
Operating Temperature Range: -30 to 80°C



Single-Phase Relay

Symbol Input Data Output Data Is2t
[As2s]		 Thermal Resistance
Terminal/Enclosure
[C/W]
Control Voltage Input Current Load Current AsRMS Voltage Range
VRMS		 Max Voltage
VPEAK		 Max Current
APEAK
001JDA332500 3-32VDC 1-20mA 25 24-330 600 250 300 1.5
001JDA334000 3-32VDC 1-20mA 40 24-330 600 250 400 1.2
001JDA484000 3-32VDC 1-25mA 40 48-480 800 300 400 1.2
001JAA484028 90-280VAC 9-18mA 40 48-480 800 300 400 1.2



Internal Diagram Mechanical Dimensions [mm] Characteristics
Single-phase relays with triac output internal diagram Single-phase relays with triac output dimensions Single-phase relays with triac output characteristic

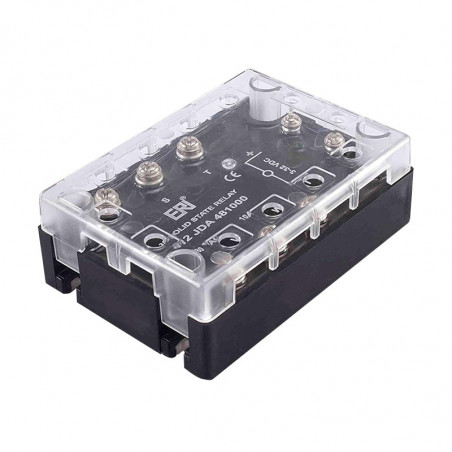

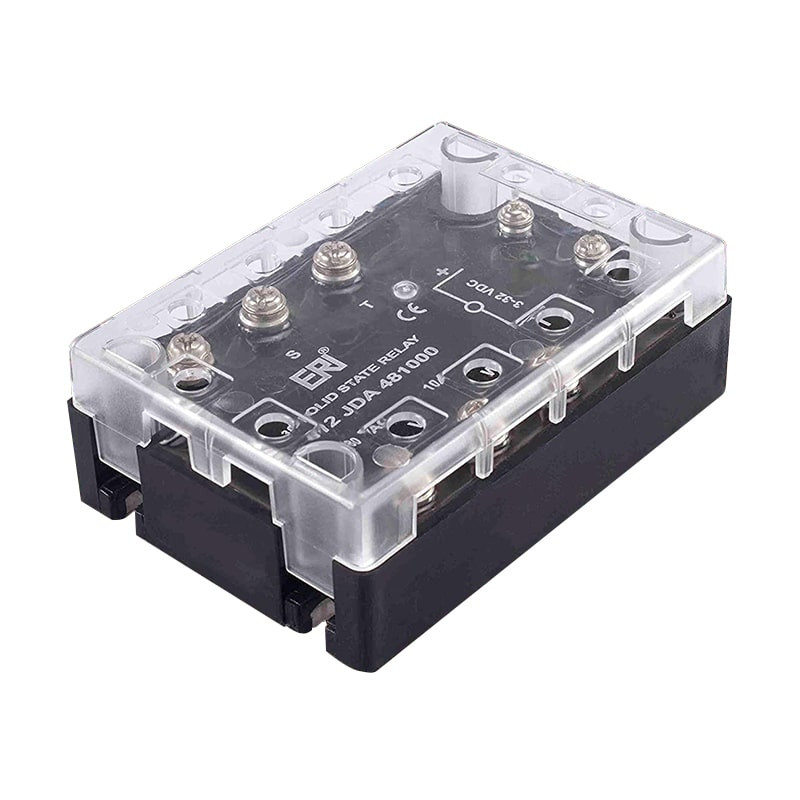

Three-Phase Relay

Symbol Input Data Output Data I2t
[A2s]		 Thermal Resistance
Terminal/Enclosure
[C/W]
Control Voltage Input Current Load Current ARMS Voltage Range
VRMS		 Max Voltage
VPEAK		 Max Current
APEAK
012JDA484000 3-32VDC 80mA 40 50-480 800-1200 350 610 1
012JAA484028 90-280VAC 8-80mA 40 50-480 800-1200 350 610 1



Internal Diagram Mechanical Dimensions [mm] Characteristics
Single-phase relays with triac output diagram
Single-phase relays with triac output dimensions
Single-phase relays with triac output characteristic
