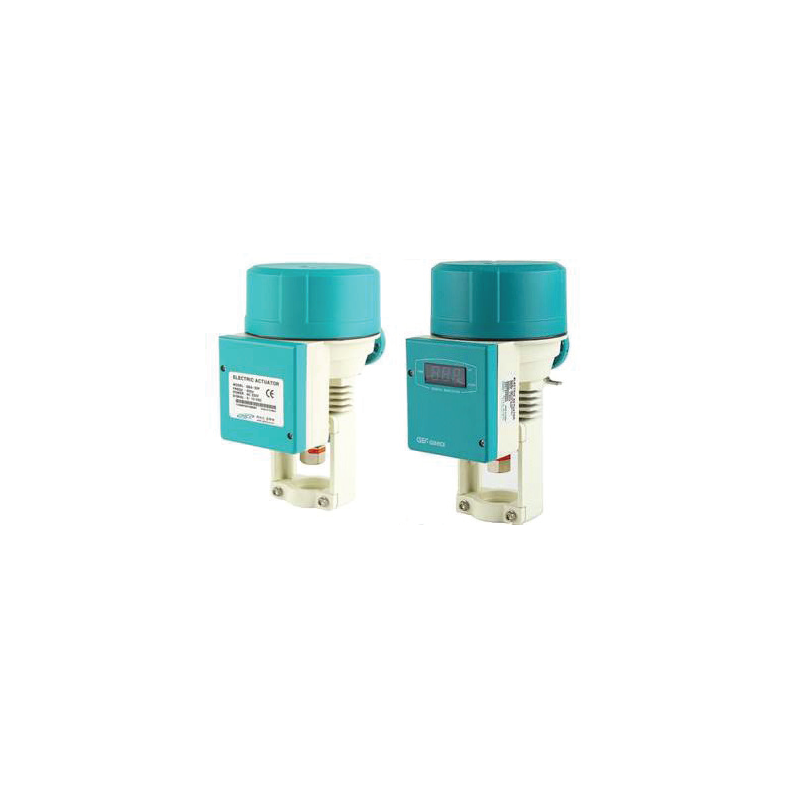

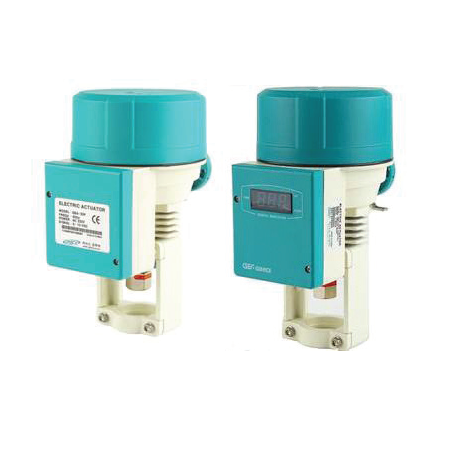

Servomotor liniar electric GEA-20/35P9(D)
Servomotor liniar electric GEA-20/35P9(D)

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: GINICE KOREA

Servomotor liniar electric GEA-20/35P9(D)


Features:

  • Proportional or On-Off Electric Linear Actuator
  • Self-Calibration using the auto setting button
  • Visual FND display using digit, applied to GEA-20/35PD
  • Minimized maintenance due to the durable structure and reliable operating
  • Valve is closed or stop automatically in case input signal is removed or failed.
  • Manual override with handle-wheel
  • Selectable input signal 4~20mA , 0-10VDC or 2-10VDC
  • Applied into Heating, Ventilation, Air conditioning or Ice thermal storage system


Technical data

Item GEA-20P(D) GEA-35P(D)
Nominal Stroke (mm) 20mm  40mm
Nominal Force (KN) 2000N (2.0)  3500N (3.5)
Operating Time (Sec) 50sec (0.4mm/s)  100sec (0.4mm/s)
Power Supply (V) 24VAC or 220VAC ± 10%  24VAC or 220VAC ± 10%
Operating mode Modulating or On-Off Modulating or On-Off
Input Signal 4~20mA, 0-10VDC lub 2-10VDC  4~20mA, 0-10VDC lub 2-10VDC
Output Signal Same as input signal Same as input signal
Operation Temperature -15 ~ 60℃ -15 ~ 60℃
Humidity 5 ~ 95% Rh 5 ~ 95% Rh
Enclosure IP 54 (DIN4050)  IP 54 (DIN4050)
Conduit Entries PF1/2ｘ 2EA  PF1/2ｘ 2EA
Net Weight (Kg) 3.4Kg  3.5Kg
