Producător: SALTEK

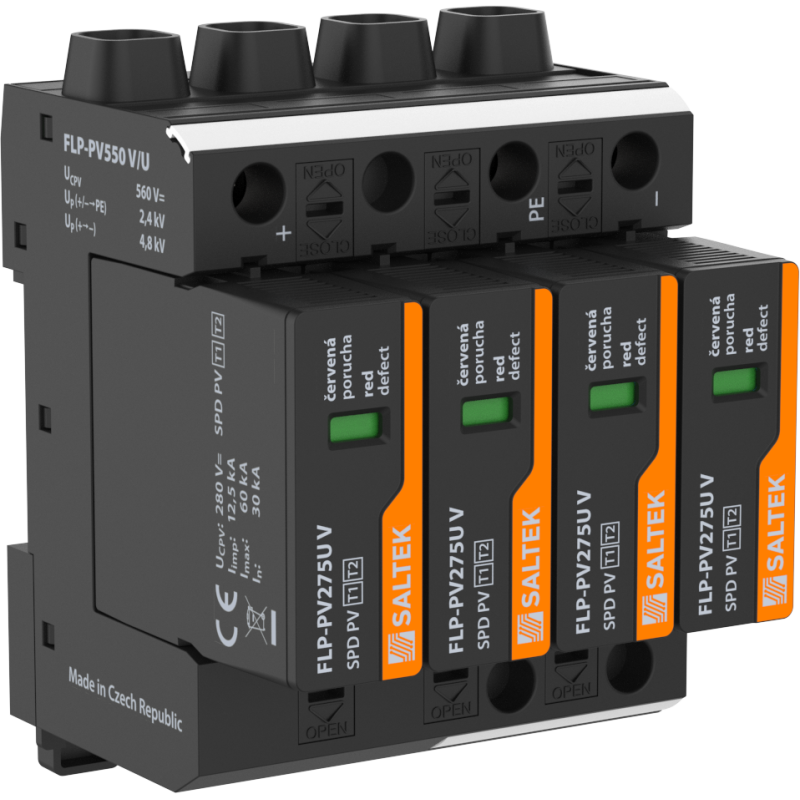

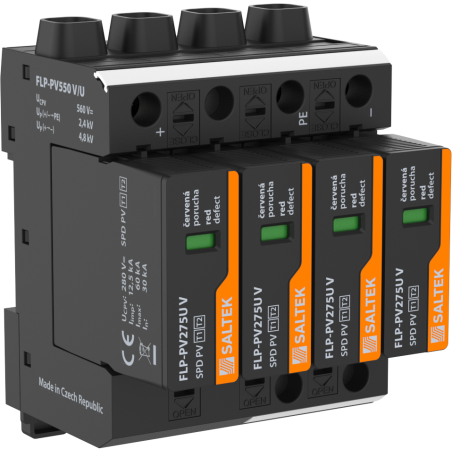

FLP-PV550 V/U - Limitator de supratensiune (SPD)

  • FLP-PV550 V/U
  • Grad de protecție IP 20
  • Tip SPD PV T1, PV T2
  • Curent total de descărcare (10/350 µs) 12.50 kA
Parameter name Parameter value
Type of SPD PV T1, PV T2
Mounting DIN rail 35 mm
Maximum operating voltage mode +/PE, -/PE UCPV 560.00 V DC
Short-circuit current rating ISCPV 10 000 A DC
Residual current mode +/PE, -/PE IPE 0.500 mA AC
Residual current mode +/PE, -/PE IPE 0.010 mA DC
Total discharge current (10/350 µs) ITotal(10/350) 25.00 kA
Lightning impulse current (10/350 µs) Iimp 12.50 kA
Total discharge current (8/20 µs) ITotal(8/20) 120.00 kA
Nominal discharge current (8/20 µs) In 30.00 kA
Maximum discharge current (8/20 µs) Imax 60.00 kA
Voltage protection level mode +/- Up 4.80 kV
Voltage protection level mode +/PE, -/PE Up 2.40 kV
Response time ta 25 ns
Cross-section of connected conductors solid (min) 1.00 mm2
Cross-section of connected conductors solid (max) 35.00 mm2
Cross-section of connected conductors stranded (min) 1.00 mm2
Cross-section of connected conductors stranded (max) 25.00 mm2
Fault indication red indication field
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
According to standard EN 61643-31, IEC 61643-31
ETIM Class EC001457
Plug module FLP-PV275U V/0
Customs tariff number 85363090
EAN 8595090561453
