Producător: SALTEK

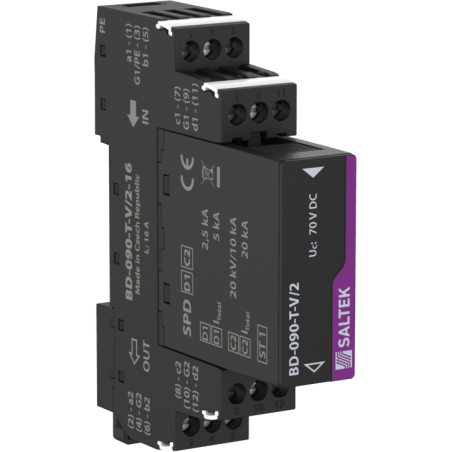

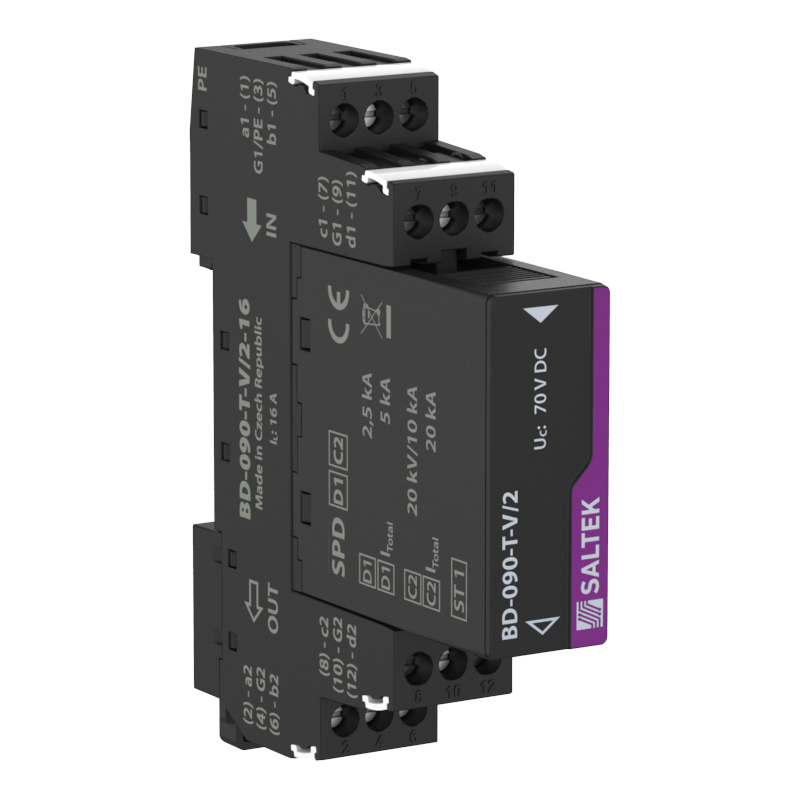

BD-090-T-V/2-16 - Limitator de supratensiune (SPD)

  • BD-090-T-V/2-16
  • Tip SPD D1,C2
  • Tensiune maximă de funcționare 50.00 V AC
Parameter name Parameter value
Type of SPD D1,C2
Location of SPD ST 1
Mounting DIN rail 35 mm
Maximum operating voltage Uc 50.00 V AC
Maximum operating voltage Uc 70.00 V DC
Nominal load current IL 16.000 A
Treshold frequency core-core f 120.00 MHz
D1 impulse discharge current (10/350 µs) per core Iimp 2.50 kA
D1 total discharge current (10/350 µs) cores-PE ITotal 5.00 kA
C2 nominal discharge current (8/20 µs) per core In 10.00 kA
C2 total discharge current (8/20 µs) cores-PE ITotal 20.00 kA
C3 voltage protection level mode core-PE at 1 kV/µs Up 550 V
C3 voltage protection level mode core-core at 1 kV/µs Up 550 V
Response time core-core ta 100 ns
Response time core-PE ta 100 ns
Connection (input - output) terminals-terminals
Cross-section of connected conductors solid (min) 0.14 mm2
Cross-section of connected conductors solid (max) 4.00 mm2
Cross-section of connected conductors stranded (min) 0.14 mm2
Cross-section of connected conductors stranded (max) 2.50 mm2
Range of ambient temperatures (min/max) -40 / 70 °C
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC001466
Plug module BD-090-T-V/2-0
Customs tariff number 85363030
EAN 8595090555506
