Producător: SALTEK

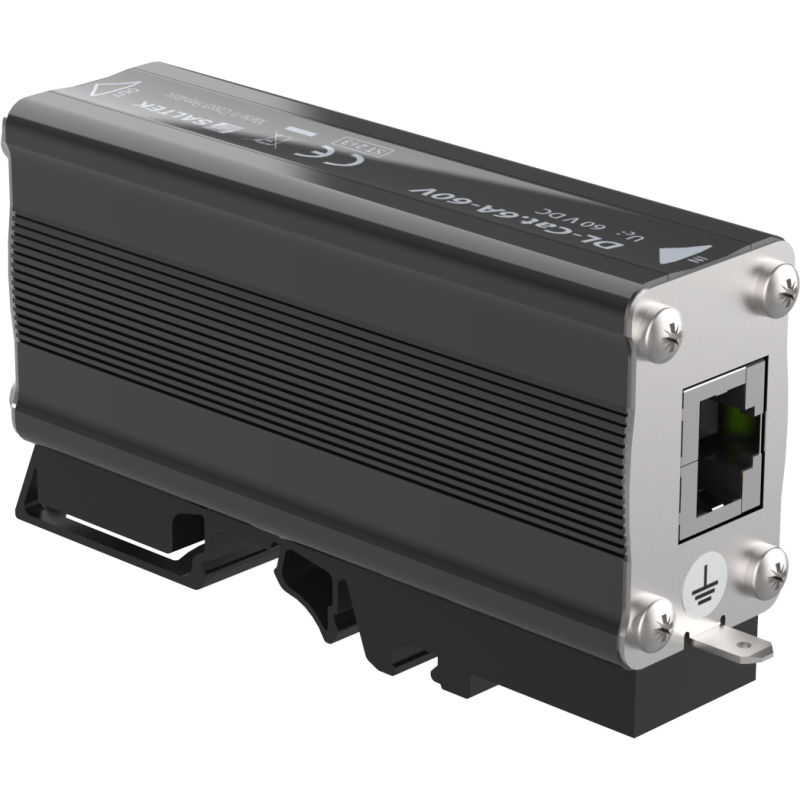

DL-Cat.6A-60V - Limitator de supratensiune (SPD)

  • DL-Cat.6A-60V
  • Grad de protecție IP 30 (without connectors IP 10)
  • Tip SPD C2,C3
Parameter name Parameter value
Type of SPD C2,C3
Location of SPD ST 2+3
Mounting DIN rail 35 mm
Maximum operating voltage core-core Uc 60 V DC
Maximum operating voltage pair-pair (POE) Uc 60 V DC
Nominal load current per core at 25 °C IL 0.5 A
Treshold frequency core-core f 500.00 MHz
Insertion attenuation at treshhold frequency 2.90 dB
C2 nominal discharge current (8/20 µs) core-core In 0.20 kA
C2 total discharge current (8/20 µs) cores-PE ITotal 1.60 kA
C2 voltage protection level mode core-core (@Uoc/In) Up 130,00 (0,4 kV / 0,2 kA)
C2 voltage protection level mode core-PE (@Uoc/In) Up 400,00 V (0,4 kV / 0,2 kA)
C2 voltage protection level mode pair-pair (POE) (@Uoc/In) Up 130,00 V (0,4 kV / 0,2 kA)
C3 voltage protection level mode core-core (@In - 1 kV/µs) Up 130,00 V (10 A)
C3 voltage protection level mode core-PE (@In - 1 kV/µs) Up 600,00 V (10 A)
C3 voltage protection level mode pair-pair (POE) (@In - 1 kV/µs) Up 130,00 V (10 A)
Response time core-core ta 1 ns
Response time core-PE ta 100 ns
Connection (input - output) RJ45/RJ45
Degree of protection IP 30 (without connectors IP 10)
Range of ambient temperatures (min/max) -10 / 50 °C
Humidity 15 - 85 %
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC000943
Customs tariff number 85363030
EAN 8595090571087
