12 Commonly Asked Questions About Slip Rings

In this content brief, we will discuss common questions surrounding slip rings. The article includes 12 commonly asked questions about slip rings and split rings. Each question is answered comprehensively, with additional illustrative diagrams provided.

Question 1: Why do we use slip rings in motors?

Slip rings are used in motors to introduce resistance to the rotor windings. Three slip rings are used in this setup, with each ring connected to one of the three parts of the rotor windings.

Adding resistance to the rotor windings improves the interaction between rotor current and stator current. The result is high torque with relatively low current. When the motor reaches operating speed, the devices are shorted, brushes lose contact, and the motor operates as a standard AC induction motor.

Question 2: What is the difference between a slip ring and a split ring?

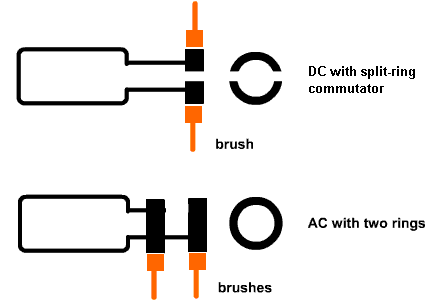

The main difference is that a slip ring transfers power from a stationary to a moving part, while a split ring is used in DC devices to reverse current flow.

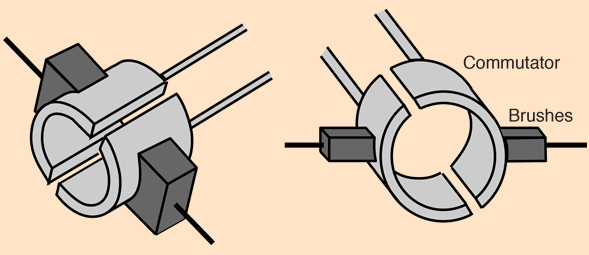

A slip ring is a continuous sealed ring with brushes on its outer layer, while a split ring is split in the middle into two halves.

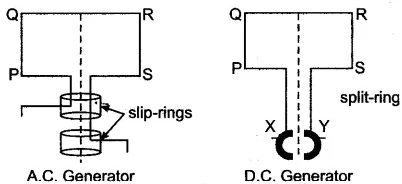

Additionally, slip rings are used in AC generators, whereas split rings are used in DC generators.

Question 3: What is the use of slip rings in AC generators?

AC generators convert mechanical energy into electrical energy using electromagnetic induction. Slip rings connect the rotating frame of AC machines to external circuits. When the machine generates alternating current, it appears on the slip ring.

Question 4: Are slip rings and commutators the same?

Both commutators and slip rings maintain electrical current flow between stationary and rotating parts. The main difference is that a commutator converts AC to DC and vice versa, while a slip ring does not.

A slip ring’s sole function is to provide a continuous connection between stationary and rotating systems.

Question 5: What is the role of a slip ring?

A slip ring provides a continuous electrical link in a rotating system between the stationary and moving parts. This allows static power sources to transfer signals or energy to the moving part.

They are made of electrically conductive materials mounted on shafts. Although insulated from the shaft, slip rings are connected to the moving system via copper windings.

Question 6: What is the purpose of a slip ring?

Slip rings are used in moving electrical systems to enable constant electrical connection between stationary and rotating parts, allowing static power sources to transmit electricity to the moving system.

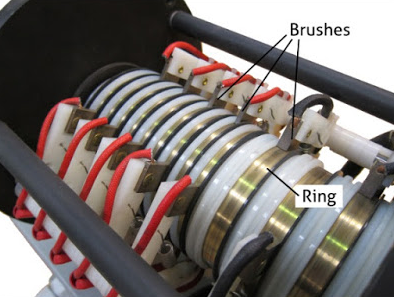

They consist of conductive material mounted on shafts. The outer surfaces are in constant sliding contact with stationary brushes.

Question 7: What is the function of a slip ring in a generator?

Slip rings are electromechanical devices that transmit current and signals from stationary to moving parts.

In generators, they maintain electrical contact with brushes. A slip ring does not change the current flow; rotation of the windings does.

Each winding is connected to one brush.

Question 8: What is the role of a slip ring in an electrical generator?

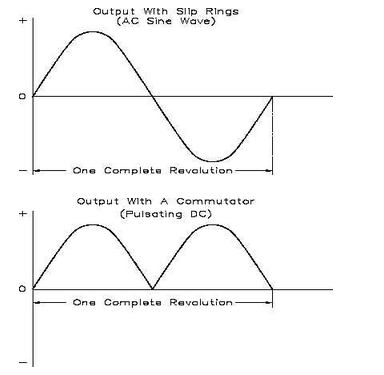

Slip rings in electric generators provide a sinusoidal output. For DC devices, commutators are used to maintain current flow in a single direction. AC generators require slip rings, which allow voltage and current to alternate between positive and negative, forming a sine wave.

Question 9: What is the difference between a commutator and a slip ring?

The key difference is that slip rings transfer current from stationary to moving parts, while commutators in DC generators reverse current flow.

Question 10: How many slip rings does a synchronous motor have?

Synchronous motors are AC motors whose shaft motion is synchronized with the supply current frequency.

They have separately excited fields. If excitation comes from a stationary DC source, the motor has two slip rings.

Brushless motors do not use slip rings because the exciter frame rotates along with the rectifiers.

Question 11: What is a slip ring in an alternator?

Slip rings provide DC excitation to alternator rotors. Brushless excitation designs do not require slip rings.

The DC produced is stationary, but the rotor rotates. Therefore, slip rings are fitted to the rotor terminals moving at shaft speed. Brushes maintain contact with the slip rings to transmit DC to the rotor windings.

Question 12: Why are split rings used in motors?

Split rings reverse current at the correct moment to prevent torque from reversing every time the coil rotates in the magnetic field plane.

Modern motors use spring-loaded carbon brushes instead of copper.

Conclusion

After reading this article, you should now understand the basics of slip rings and commutators, and the differences will no longer confuse you.
