Произвођач: ISAFE MOBILE EX

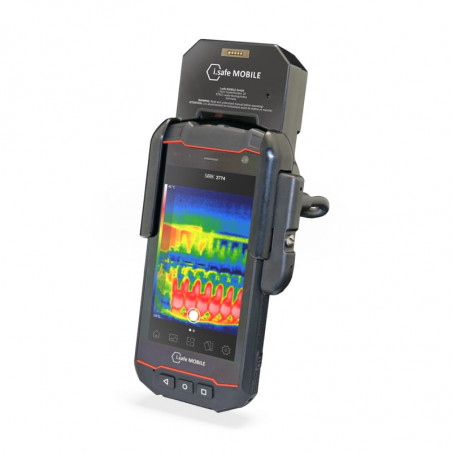

ИС-ТЦ1А.1 - Термовизијска камера за зоне 1/21

The thermal camera IS-TC1A.1, in combination with the industrial smartphone IS530.1 detects temperatures in the Ex-hazardous area from -40°C to 330°C in a matter of seconds. The thermal images and videos are processed and documented directly via the ISM interface of the IS530.1 smartphone.


Advantages

  • Capture, analyze and document thermal images
  • Direct data transfer via multifunctional (ISM) interface
  • Direct interface connection with the device, no Bluetooth® necessary
  • Power supply via the connected device, therefore no battery necessary

Technical features

ATEX II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
IECEx Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
Sensor resolution 30000 pixel
Digital zoom via App
Sensor sensitivity 65 mK (typical)
Frame rate <9 Hz to 32 Hz
Scene dynamic range -40°C to 330°C
Temperature accuracy ±7°C and 7% (at 5°C to 140°C)
±10°C and 10% (at 140°C to 330°C)
Detection range up to 300 m
Recognition range up to 75 m
Identification range up to 25 m
Field of view 35° (HFOV)
26° (VFOV)
Dimensions 112 x 82 x 50 mm
Weight 190 g
Power supply over the connected mobile device
Communication over the multi functional ISM interface of the IS530.1
Types of protection IP67
MIL-STD 810H
useable from -10°C to 60°C


Contents

  • Thermal camera
  • Quick Start Manual
  • Safety Instructions
