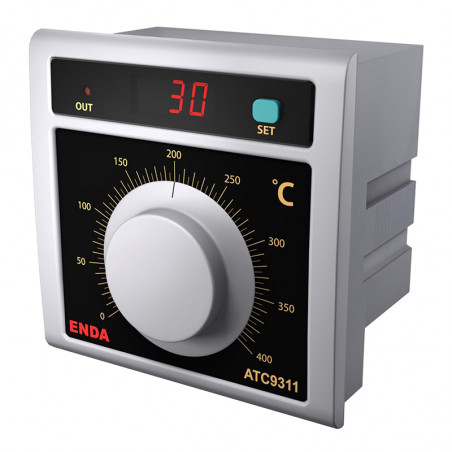

Аналогни регулатор температуре АТЦ9311
  • Аналогни регулатор температуре АТЦ9311

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: Sisel

Аналогни регулатор температуре АТЦ9311

Analog temperature controller ATC9311

The ATC9311 analog controller is a specialized temperature controller by Sisel that is used in many specialty industries.

  • Possibility of displaying the measured or setpoint value;
  • Easy to use;
  • Protection in case of sensor damage;
  • Complies with European standards.

Technical data of analog temperature controller ATC9311

Accuracy ±4% (full scale)
±0,5% or ±1 digit on display
Measurement range
 Fe-Const: 0... 400 °C
Input type
 Thermocouple Fe-Const
Output relay 250VAC, 2A, NC+NO or logic 0/12V DC, 20mA
Display 3 red LED digits, h=7,62 mm
Power supply
 230V AC +15%, -20%, 50/60Hz, lub 24V AC ±10%, 50/60Hz (select during ordering)
Operating temperature
 0 ... 50 °C
Dimensions [mm]
 96 x 96 x 50
Connector strip screw connection 1,5mm2
Lifetime 30.000.000 mechanical operations
300.000 electrical operations
Regulation type
 ON-OFF or proportional
Weight 250 g


Types of analog temperature controllers ATC9311

Type Power supply Output
ATC9311 230V AC relay
ATC9311-SSR 230V AC logic
ATC9311-24 9-30 VDC / 7-24 VAC relay
ATC9311-24-SSR 9-30 VDC / 7-24 VAC logic


Dimensions Connection diagram
ANALOGOWY REGULATOR TEMPERATURY ATC9311 wymiary ANALOGOWY REGULATOR TEMPERATURY ATC9311 schemat wyprowadzeń
