Елотатски контактни заптивници
  • Елотатски контактни заптивници

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: TEMAS

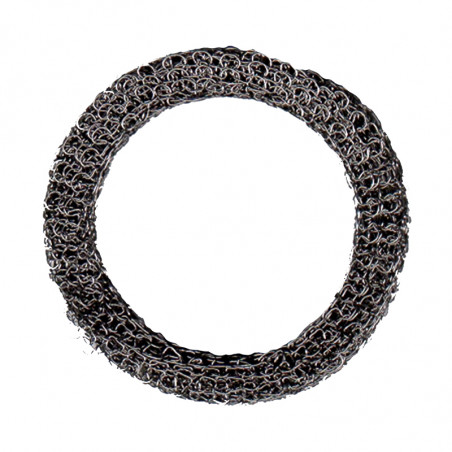

Елотатски контактни заптивници

  • high conductivity (electrical and thermal)  with vibration and shock dampening properties
  • low impedance (typically less than 0.02 ohm) even  with low closure force
  • typical interlocking loop structure  provides the spring effect
  • material density of the fine wire mesh  defines the required spring force
  • customized shapes available

Wide voice of wire material

  • monel (MO)
  • beryllium copper (BC)
  • tinned copper clad steel (TC)
  • stainless steel (SL)
  • aluminium (AL)



Washers

Elastic washers and contacts



P/N Outside Diameter
[mm]		 Inside Diameter
[mm]		 Free Height
[mm]

W.060.024.024

 6.0 2.4 2.4

W.075.032.032

 7.5 3.2 3.2

W.075.040.048

 7.5 4.0 4.8

W.113.081.064

 11.3 8.1 6.4

W.127.050.032

 12.7 5.0 3.2

W.127.080.064

 12.7 8.0 6.4

W.135.090.048

 13.5 9.0 4.8

W.159.090.024

 15.9 9.0 2.4

W.191.127.032

 19.1 12.7 3.2

W.214.159.048

 21.4 15.9 4.8

W.254.127.032

 25.4 12.7 3.2

W.320.159.048

 32.0 15.9 4.8

W.320.127.064

 32.0 12.7 6.4

Contacts

Elastic washers and contacts

P/N Outside Diameter
[mm]		 Free Height
[mm]

WP.024.032

 2.4 3.2

WP.032.032

 3.2 3.2

WP.032.064

 3.2 6.4

WP.032.095

 3.2 9.5

WP.064.032

 6.4 3.2

WP.064.064

 6.4 6.4

WP.064.095

 6.4 9.5

WP.064.127

 6.4 12.7

WP.127.048

 12.7 4.8

WP.127.064

 12.7 6.4

WP.127.095

 12.7 9.5

WP.127.127

 12.7 12.7

WP.127.159

 12.7 15.9


Other size, configurations or materials(according to your drawing) available upon request
