Произвођач: DetasUltra

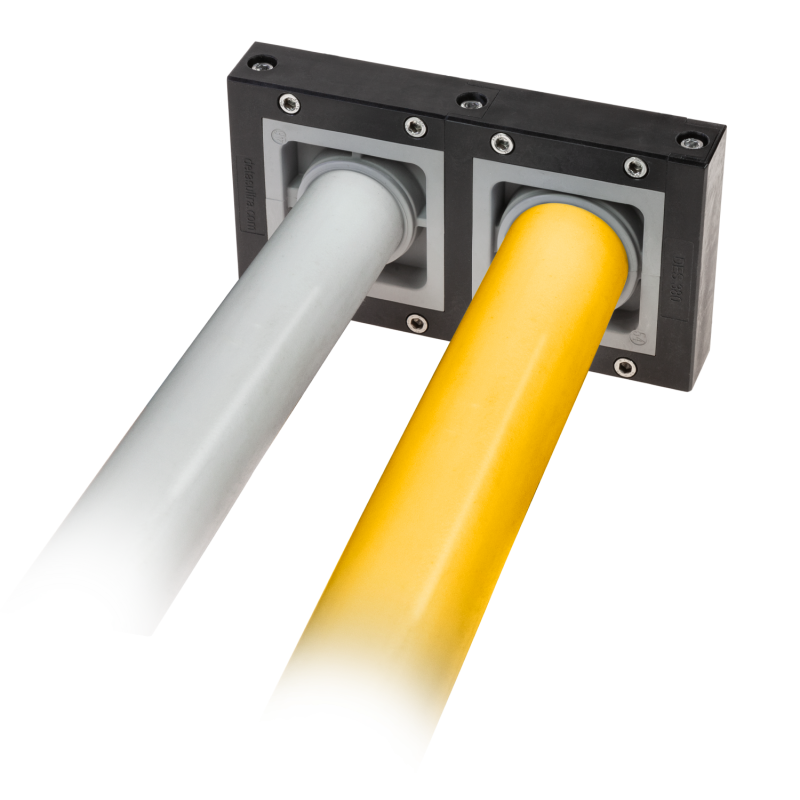

DES 380MX4 - Оквири за кабловске улазе

  • 1731010274
  • Димензије 399,5 x 116
  • Рупа 355,5 x 72
  • Тип производа Modułowe przepusty kablowe

The 380MX's divisible frames are used to secure large-section cables at the entrance of switchboards or electrical equipment, ensuring fluidic and mechanical sealing.

  • Fast and easy fixing of big diameter cables and corrugated pipes
  • Modular system
  • Diameters from 36 to 65 mm
  • Horizontal or vertical installation
  • IP54
  • No gasket required
  • AISI 304 screws
  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm] Dimensions [mm]
DES 380 MX2 1731010272 166,5 x 72 210,5 x 116
DES 380 MX3 1731010273 261 x 72 305 x 116
DES 380 MX4 1731010274 355,5 x 72 399,5 x 116
