Произвођач: Partex Marking Systems

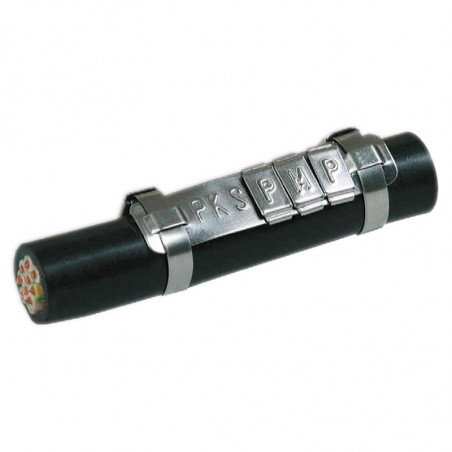

ПКС-симпатични маркери на кабловима

- Compete system from cable, hose, pipes and components marking.
- Multi character tags - pressed in PARTEX,from single characters - on place.
- Made from acid-proof steel, which can work at extremal conditions.
- Easy assemble. .
Properties
Material:  steel ai si 316, acid proof
Operation temperature:  Extremal conditions
Text:  Pressed

Single character and grips
Type Description Character quantity Quantity in package

Length L
[mm]

 Height W
[mm]		 Width SW
[mm]
PKS10006PP single character tag:  A-Z,  0-9,
+ - / . : 		 - 50 szt. 5.5 10.9 4.8
PKS10040* grip 47 mm 6 50 szt. 47.0 10.3 4.8
PKS10060* grip 65 mm 9 50 szt.. 65.0 10.3 4.8
PKS10080* grip 87 mm 13 50 szt. 87.0 10.3 4.8
PKS10120* grip 107 mm 17 50 szt. 109.0 10.3 4.8
PKS10120* grip 128 mm 20 50 szt. 128.0 10.3 4.8
* S = for band, H = with hole

For band versions  (s)
Version with holes (h)


Multi character with text in one line

Type Length L
[mm]		 Text height
[mm]		 Character quantity
PKS10040* 47.0 4.5 8
PKS10060* 65.0 4.5 13
PKS10080* 87.0 4.5 19
PKS10100* 109.0 4.5 25
PKS10120* 128.0 4.5 30
* S = for band H = with hole
Multi character with text in 2 lines.


Type Length L
[mm]		 Text height
[mm]		 Character quantity
PKS12040* 47.0 3.2 22
PKS12060* 65.0 3.2 36
PKS12080* 87.0 3.2 54
PKS12100* 109.0 3.2 70
PKS12120* 128.0 3.2 86
* S = for band H = with hole

Packing

 Multi character tags are delivered sorted, put on the glue tape.


Installation
Pks tags can be mounted with steel bands or steel wire.
Type Description Width
[mm]		 Length
[mm]		 Max.Perimeter
[mm]
PKS46150 steel band 4.6 150 37
PKS46200 4.6 200 50
PKS46360 4.6 360 102
RT 05 0.5 50 m -
PKS12120* steel wire 3.2


Application
Tools for steel bands assembly.
PKS10AT - with automatic cut out.
