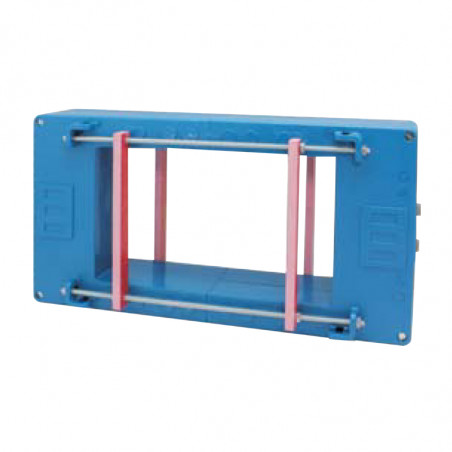

ТАТ225 Тренутни трансформатор за железницу 225к127мм

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0,72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1,2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <95W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE




SECONDARY 5 A

Ratio Burdens
[VA]		 Code
cl. 0,5 cl. 1
1000/5 A 25 50

TAT2251K0X05
1200/5 A 30 60

TAT2251K2X05
1500/5 A 35 70

TAT2251K5X05
2000/5 A 40 80

TAT2252K0X05
2500/5 A 50 100

TAT2252K5X05
3000/5 A 70 120

TAT2253K0X05
4000/5 A 80 150

TAT2254K0X05
5000/5 A 100 180

TAT2255K0X05
6000/5 A 100 180

TAT2256K0X05
8000/5 A 100 180

TAT2258K0X05
10000/5 A 100 180

TAT22510KX05



SECONDARY 1 A

Ratio Burdens
[VA]		 Code
cl. 0,5 cl. 1
1000/1 A 25 50

TAT2251K0X01
1200/1 A 30 60

TAT2251K2X01
1500/1 A 35 70

TAT2251K5X01
2000/1 A 40 80

TAT2252K0X01
2500/1 A 50 100

TAT2252K5X01
3000/1 A 70 120

TAT2253K0X01
4000/1 A 80 150

TAT2254K0X01
5000/1 A 100 180

TAT2255K0X01
6000/1 A 100 180

TAT2256K0X01
8000/1 A 100 180

TAT2258K0X01
10000/1 A 100 180

TAT22510KX01



SECONDARY 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
1000/5A 5 TAT2251K0J05 5 TAT2251K0Y05 1 TAT2251K0S05
1500/5A 7.5 TAT2251K5J05 7.5 TAT2251K5Y05 5 TAT2251K5S05
2000/5A 10 TAT2252K0J05 10 TAT2252K0Y05 5 TAT2292K0S05
3000/5A 20 TAT2253K0J05 20 TAT2253K0Y05 10 TAT2253K0S05
4000/5A 30 TAT2254K0J05 30 TAT2254K0Y05 20 TAT2254K0S05
5000/5A 30 TAT2255K0J05 30 TAT2255K0Y05 20 TAT2255K0S05
6000/5A 30 TAT2256K0J05 30 TAT2256K0Y05 20 TAT2256K0S05
8000/5A 30 TAT2258K0J05 30 TAT2258K0Y05 20 TAT2258K0S05



SECONDARY 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
1000/1A 5 TAT2251K0J01 5 TAT2251K0Y01 1 TAT2251K0S01
1500/1A 7.5 TAT2251K5J01 7.5 TAT2251K5Y01 5 TAT2251K5S01
2000/1A 10 TAT2252K0J01 10 TAT2252K0Y01 5 TAT2292K0S01
3000/1A 20 TAT2253K0J01 20 TAT2253K0Y01 10 TAT2253K0S01
4000/1A 30 TAT2254K0J01 30 TAT2254K0Y01 20 TAT2254K0S01
5000/1A 30 TAT2255K0J01 30 TAT2255K0Y01 20 TAT2255K0S01
6000/1A 30 TAT2256K0J01 30 TAT2256K0Y01 20 TAT2256K0S01
8000/1A 30 TAT2258K0J01 30 TAT2258K0Y01 20 TAT2258K0S01



SECONDARY 5 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
1000/5A 30 TAT2251K0K05 10 TAT2251K0L05 5 TAT2251K0M05
1200/5A 35 TAT2251K2K05 12 TAT2251K2L05 6 TAT2251K2M05
1500/5A 40 TAT2251K5K05 15 TAT2251K5L05 8 TAT2251K5M05
2000/5A 60 TAT2252K0K05 20 TAT2252K0L05 10 TAT2252K0M05
2500/5A 70 TAT2252K5K05 20 TAT2252K5L05 10 TAT2252K5M05
3000/5A 80 TAT2253K0K05 25 TAT2253K0L05 12 TAT2253K0M05
4000/5A 100 TAT2254K0K05 30 TAT2254K0L05 15 TAT2254K0M05
5000/5A 40 TAT2255K0K05 15 TAT2255K0L05 5 TAT2255K0M05
6000/5A 40 TAT2256K0K05 15 TAT2256K0L05 5 TAT2256K0M05
8000/5A 40 TAT2258K0K05 15 TAT2258K0L05 5 TAT2258K0M05

SECONDARY 1 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
1000/1A 30 TAT2251K0K01 10 TAT2251K0L01 5 TAT2251K0M01
1200/1A 35 TAT2251K2K01 12 TAT2251K2L01 6 TAT2251K2M01
1500/1A 40 TAT2251K5K01 15 TAT2251K5L01 8 TAT2251K5M01
2000/1A 60 TAT2252K0K01 20 TAT2252K0L01 10 TAT2252K0M01
2500/1A 70 TAT2252K5K01 20 TAT2252K5L01 10 TAT2252K5M01
3000/1A 80 TAT2253K0K01 25 TAT2253K0L01 12 TAT2253K0M01
4000/1A 100 TAT2254K0K01 30 TAT2254K0L01 15 TAT2254K0M01
5000/1A 40 TAT2255K0K01 15 TAT2255K0L01 5 TAT2255K0M01
6000/1A 40 TAT2256K0K01 15 TAT2256K0L01 5 TAT2256K0M01
8000/1A 40 TAT2258K0K01 15 TAT2258K0L01 5 TAT2258K0M01


Dimensions

Przekładnik prądowy TAT225 na szynę 225x127mm wymiary
