Произвођач: M-SYSTEM

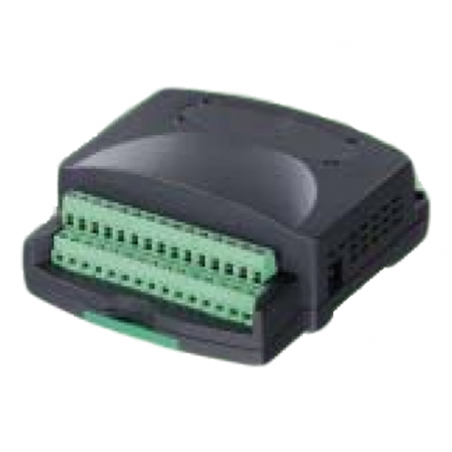

Снимачи серије Р2М

Recorder PC - R2M series


Features

  • 8 analogue inputs;
  • 1 trigger input;
  • 1 alarm output;
  • data transmitted to calculating sheets;
  • software and RS232 cable delivered with device.


Dane techniczne

Power supply
24 VDC ±10%, 0,9 W
Operating temperature
-5..+60 °C
Humidity
30..90%Rh
Mounting
surface or DIN rail assembly
Dimensions
100 x 110 x 41 mm
Weight
300 g
Communication
RS-232
Isolation
between analogue inputs, configure input, RS232, alarm output and supply
IN/OUT parameters
Alarm outputs
MOSFET (without polarisation)
≤ 50 Ω - turn on
≥ 1 MΩ - turn off
Load voltage: 50 Vmax
Load current: 50 mA (ciągły), 300 mAmax (≤0,1 s)
Trigger input
currentless contact, turn on at U≤1,5 VDC
Analog inputs

R2M-2G3-R/MSR
8 inputs, ±10 VDC
Input resistance: min. 300 kΩ
Sampling: 50 ms / 8 inputs
R2M-2H3-R/MSR
8 thermocouple inputs
Input resistance: min. 300 kΩ
Types: PR, K, E, J, T, B, R, S, C, N, U, L, P
Sampling: 50ms / 8 wejść


Product Number


2G3: 8 voltage inputs
2H3: 8 thermocouple inputs


Dimensions [mm (inches)]

REJESTRATORY PC SERII R2M wymiary
