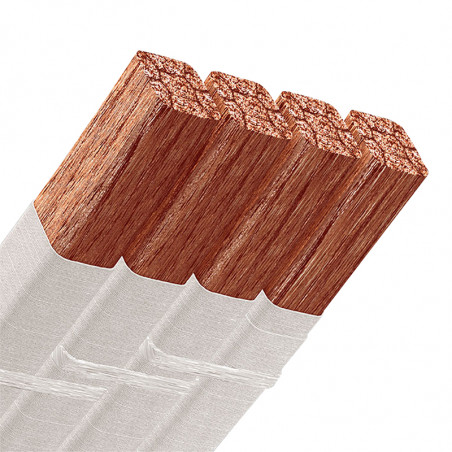

планар РУПАЛИТ
  • планар РУПАЛИТ

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: PACK Litz Wire

планар РУПАЛИТ

Structure
- enamel wire copper (0,02 -1,6mm AWG 13-52),
- enamel wire aluminium(0,25 - 5mm AWG 4-30) or  RUPALIT Profile,
- sections up to 150mm2.

Insulation material
- natural silk(52),
- poliamid yarn (63) (NYLON®)
- polyester foil 150°C (Mylar®),
- foil  P.E.N. (XR 20), 155°C,
- foil Poliamid 220°C (Kapton®, Kapton CR®).




Wymiary standardowe

Dimensions
[mm]

width x height
[mm]

Section
[mm]

35//10x0,04

6,00 x 0,40

0,45

24 // 27 x 0,07

13,30x0,80

2,50

4//120x0,10

6,90x1,45

3,77

12//70x0,20

25,00 x 2,20

26,39

18//70x0,20

37,00 x 2,20

39,59

6 // 350 x 0,20

30,00 x 5,00

65,98

7 // 350 x 0,20

35,50 x 5,00

76,98

8 // 350 x 0,20

41,00x5,00

88,00

//
