Сигурносни прекидач серије ГСС-а
  • Сигурносни прекидач серије ГСС-а

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: Honeywell

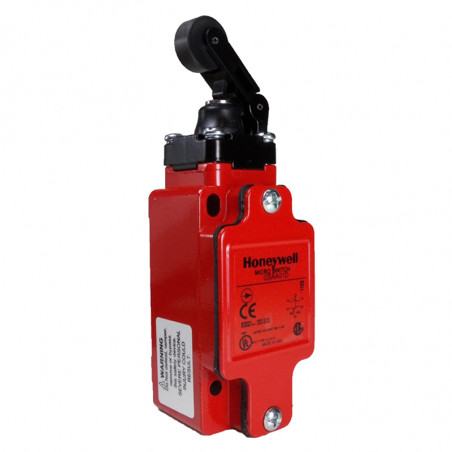

Сигурносни прекидач серије ГСС-а

GSS Series products may be used alone as Category 1 safety components. In conjunction with other safety switches and our complete range of safety relays, it is possible to construct comprehensive protection schemes with Category 2, 3 or 4 complianc

Features:
• EN 50041 and EN 50047 mounting and characteristics
• Designed to IEC electrical standard for world-wide use in guarding applications
• Positive opening operation of Normally Closed contacts conforming to IEC /EN 60947-5-1-3
• Available with a wide range of positive opening contacts
• Rugged housing (Zinc Die-cast)
• Full range of actuator heads and levers suitable for safety applications
• Sealing up to IP 67 (NEMA 1, 4, 12 [&] 13)
• Snap action and slow action basic switches
• International conduit sizes
• Galvanically isolated contacts
• UL listed; CSA and CE certified,BG
approved (unless indicated)
• Red body colour for easy safety recognition


Technical data:
Mechanical life >15 millions operations
Degree of protection IP67
Temperature range -25 ... 85°C
Storage temperature -40 ... 85°C
Approvals: IEC 60947-5-1,
  EN 60947-5-1,
  AC15 A300/A600
  DC13 Q300
  UL [&] CSA
Vibration 10g according to IEC 68-2-6
Shocks 50g according to IEC 68-2-27
Dimensions [mm/inch]

Application



Ordering

1 - Conduit thread:
A- 1/2”NPT
B- PG13.5
C- 20mm
D- PF1/2”
2 - Contact types
01 - Fast contact, 1NC/1 NO
04 - Slow contact, załącz przed rozłączeniem, 1NC /1 NO
06 - Slow contact, 2NC
20 - Fast contact,, 2 pole, 2NC / 2NO
21 - Fast contact,, 2 pole, 2NC / 2NO,
40 - Slow contact, 4NC
42 - Slow contact, make before break, 2NC / 1NO
44 - Slow contact, make before break, 2NC / 2NO
46 - Slow contact, make before break, 3NC / 1NO
3 - Lever type:
A1A - Side lever with plastic roller
A1B - Side lever with metal roller
B - Pusher
C - Pusher with roller
D - Upper lever with roller
A5A - Side lever with plastic roller
A5B - Side lever with metal roller
