Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: SALTEK

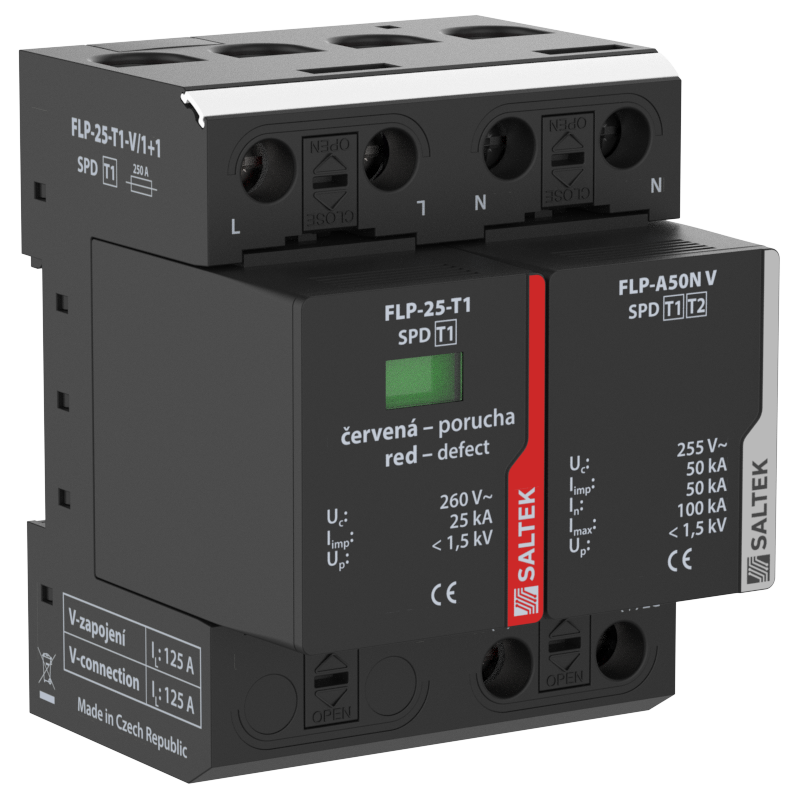

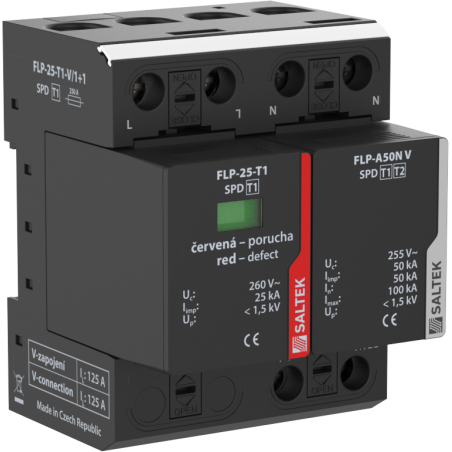

FLP-25-T1-V/1+1 - Ограничивач пренапона (SPD)

  • FLP-25-T1-V/1+1
  • Напон 230 V AC
  • Степен заштите IP 20
  • Тип SPD T1
  • Тип мреже TT
  • Даљинска индикација no
Parameter name Parameter value
Type of SPD T1
Mounting DIN rail 35 mm
Nominal voltage Un 230 V AC
Maximum operating voltage L-N Uc 260.00 V AC
Maximum operating voltage N-PE Uc 255.00 V AC
Nominal load current for "V" connection IL 125 A
Type of network TT
Maximum overcurrent protection 250 A gL/gG
Maximum overcurrent protection for "V" connection 125 A gL/gG
Short-circuit current rating ISCCR 50.0 kA
Total discharge current (10/350 µs) ITotal(10/350) 50.00 kA
Lightning impulse current (10/350 µs) L-N Iimp 25.00 kA
Lightning impulse current (10/350 µs) N-PE Iimp 50.00 kA
Voltage protection level mode L-N Up 1.50 kV
Voltage protection level mode L-PE Up 2.20 kV
Voltage protection level mode N-PE Up 1.50 kV
Ability to independently switch off the following current N-PE Ifi 0.1 kA
Response time L-N ta 100 ns
Response time N-PE ta 100 ns
TOV 5 s L-N 335 V
TOV characteristic (TOV 5 s) withstand
TOV 200 ms N-PE 1 200 V
TOV characteristic (TOV 200 ms) withstand
Cross-section of connected conductors solid (min) 2.50 mm2
Cross-section of connected conductors solid (max) 50.00 mm2
Cross-section of connected conductors stranded (min) 2.50 mm2
Cross-section of connected conductors stranded (max) 35.00 mm2
Fault indication L-N red indication field
Fault indication N-PE no
Remote indication no
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000381
Plug module FLP-25-T1-V/0|FLP-A50N V/0
Customs tariff number 85363090
EAN 8595090562573
