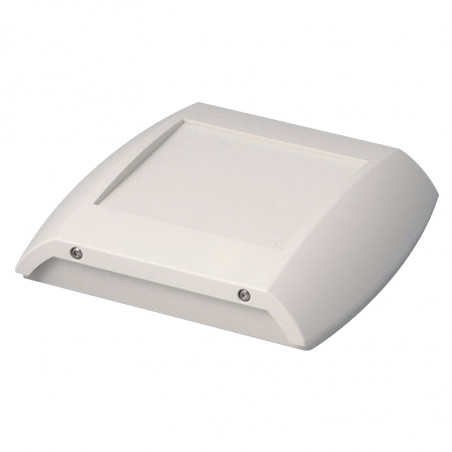

Зидно кућиште Диатец серија

Attractive low profile plastic enclosures These highly attractive tablet style enclosures are especially suitable for living and working environments – ideal for communication and network equipment.

• modern, flat enclosure design for wall mounted and desktop electronics
• central control panel for mounting a keypad, touch screen or display unit
• recessed area for installation and protection of interfaces, plug-in connections, cable glands etc.
• easy, invisible wall mounting; knockouts in base for wall fixings
• four sizes in two colours
• DIATEC XS: two-piece case, consisting of a top and bottom part, screwed together, integrated battery holder for 2 x AA, pre-shaped flush-mounting box contoured in the bottom part
• DIATEC S, M, L: four-piece case, consisting of a top and bottom part as well as two covers for concealing the assembly screws; if required, the snap-on covers can be locked to prevent unauthorised access; integrated battery compartment for 2 x AA or 1 x 9 V
• slot-in panels (accessories) can be used to separate the electronics and terminal areas
• protection class IP 40
• snap-on side panels allow installation without disassembly of the top panel (S, M, L)
• hinged lids in solid ABS, and translucent or transparent polycarbonate (accessories S, M, L)
• internal screw pillars for mounting PCBs

Applications:

• Peripheral equipment for computers
• IoT/IIoT
• Gateways
• Data system engineering
• Systems for data collection on the job
• Access and security controls
• Measuring and controlling devices
• Medical, wellness and laboratory technology
