Nagrzewnica indukcyjna EHX-03A (460 - 480V / 40A) 100555
Nagrzewnica indukcyjna EHX-03A (460 - 480V / 40A) 100555
Nagrzewnica indukcyjna EHX-03A (460 - 480V / 40A) 100555

A fényképek csak tájékoztató jellegűek. Lásd a termék specifikációit

Kérjük, használjon latin karaktereket

Gyártó: TM Induction Heating

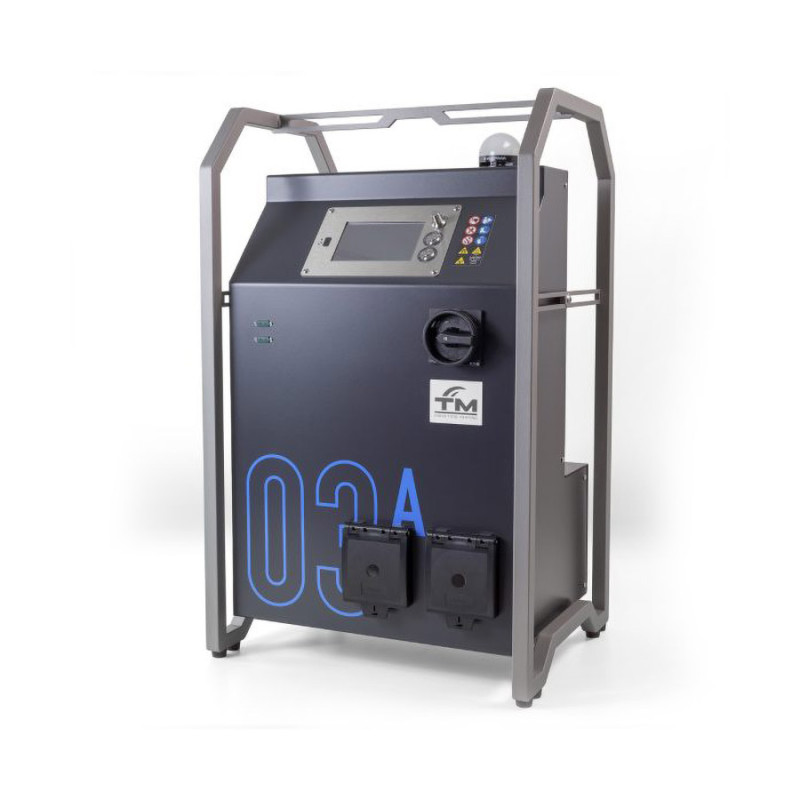

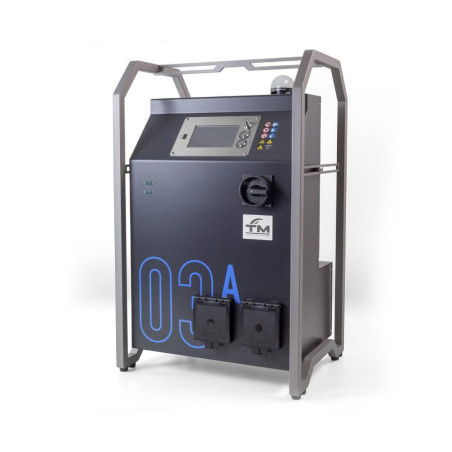

Induction heater EHX-03A (460 - 480V / 40A) 100555

  • 100555
  • Napięcie 480V
  • Prąd maksymalny 40A
  • Częstotliwość 50/60 Hz

The EHX-03A is a powerful and portable induction heater, suitable for applications requiring frequent assembly and/or disassembly. It is designed for use with air-cooled inductors. Compared to the previous generation of medium-frequency generators, the EHX-03A represents a significant advancement. We have achieved greater output power in a three-times smaller footprint than its predecessor.

Using a flexible inductor, it is possible to heat components with varying geometries, such as gears, clutches, and bearings. A fixed inductor, on the other hand, will allow you to perform heating cycles on specific parts in the same way every time.

Specifications

Input (Power)
Voltage 400 - 480 V
Current (max) 32 / 40 A
Frequency 50 / 60 Hz
Output (Generated Power)
Voltage (max) 540 - 660 V
Current (max) 57 A
Output power (max) 22 - 30 kW
Other
Dimensions (L x W x H) 440 x 350 x 712 mm
Weight 39 kg
Kevésbé
Olvass tovább

Ajánlatkérés küldése

Érdekel ez a termék? További információra vagy egyedi árajánlatra van szüksége?

Lépjen kapcsolatba velünk
Kérdezzen a termékről close
Köszönjük az üzenetét Amint lehet, válaszolunk
Kérdezzen a termékről close
Böngésszen
Kérelem beküldése

Add to wishlist

Musisz być zalogowany/a

  • Napięcie 480V
  • Prąd maksymalny 40A
  • Częstotliwość 50/60 Hz

The EHX-03A is a powerful and portable induction heater, suitable for applications requiring frequent assembly and/or disassembly. It is designed for use with air-cooled inductors. Compared to the previous generation of medium-frequency generators, the EHX-03A represents a significant advancement. We have achieved greater output power in a three-times smaller footprint than its predecessor.

Using a flexible inductor, it is possible to heat components with varying geometries, such as gears, clutches, and bearings. A fixed inductor, on the other hand, will allow you to perform heating cycles on specific parts in the same way every time.

Specifications

Input (Power)
Voltage 400 - 480 V
Current (max) 32 / 40 A
Frequency 50 / 60 Hz
Output (Generated Power)
Voltage (max) 540 - 660 V
Current (max) 57 A
Output power (max) 22 - 30 kW
Other
Dimensions (L x W x H) 440 x 350 x 712 mm
Weight 39 kg
