SURETHERM PRO 1X indukciós fűtőberendezés

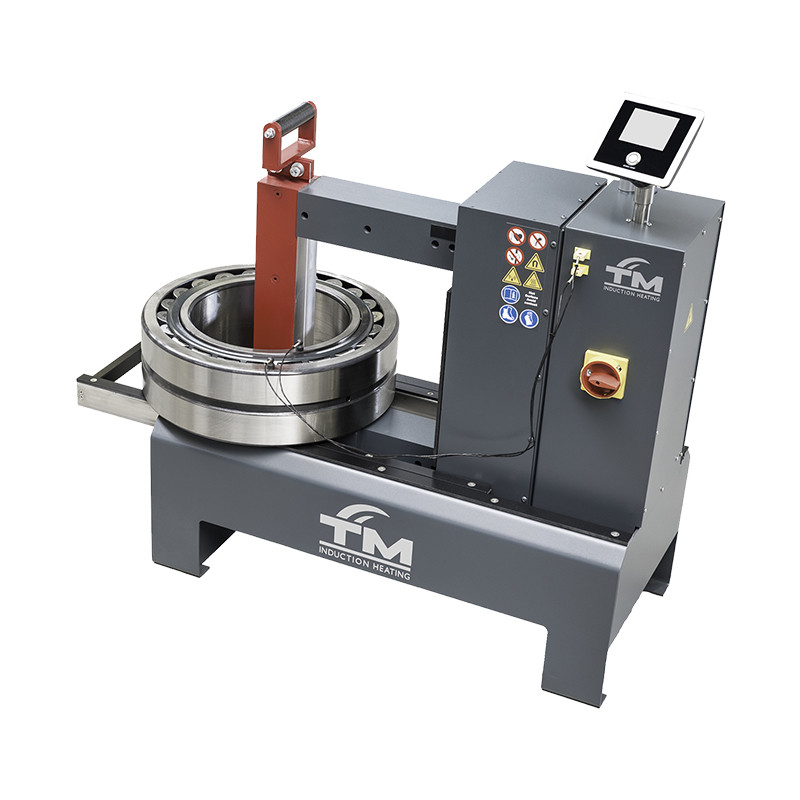

Induction heater SURETHERM PRO 1X

With our new generation of low frequency equipment, we offer the most efficient heaters for a wide range of applications.

Our SURETHERM and EASYTHERM series assure a safe heating process, where only the workpiece is heated. The heaters are suitable for sealed and shielded bearings, pre-greased bearings, bearings with polyamide cages, gearwheels, pulleys, couplings, and bushings.



Specifications


Power Rating 12,8 kVA
Facility Power 400 - 480 - 575 V / 32 A / 50/60 Hz
Temperature Control Single / Dual
Weight 157 kg
Operating Area (WxH) 300 x 330 mm
Dimensions (LxBxH) 850 x 420 x 950 mm
Min. bore diameter (workpiece) ø 30 mm
Max. outer diameter (workpiece) ø 1000 mm
Max. weight (workpiece) 400 Kg
