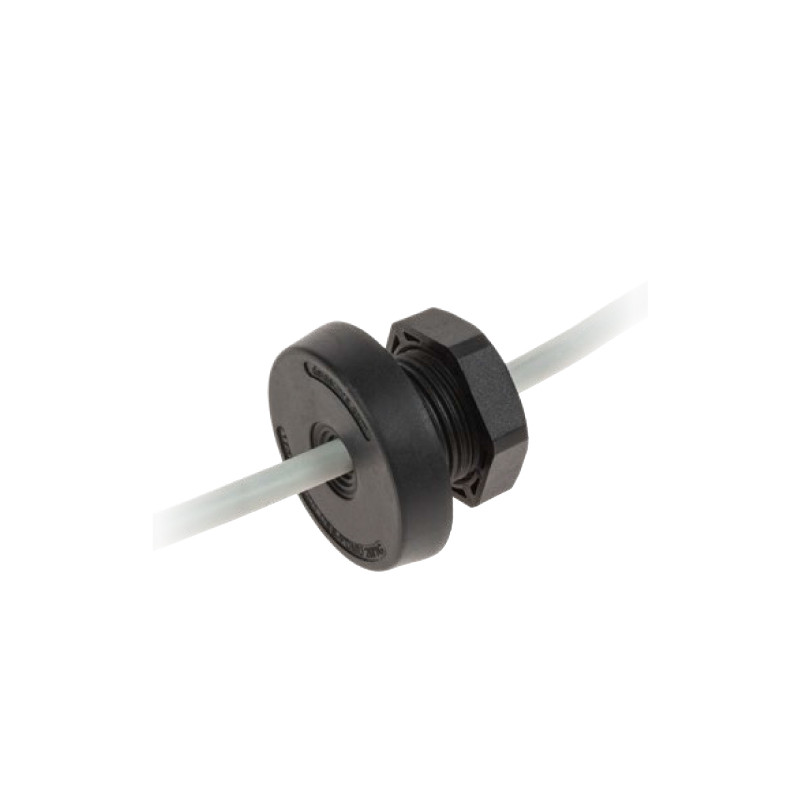

DES PDMU Round cable entry plates use metric hole openings and are an economical and reliable alternative to standard industrial cable glands where ease of assembly and significant space savings are required.
Model | Code | Dimensions [mm] Cut-out | Dimensions [mm] | Thread | No. cables - Ø cables [mm] |
---|---|---|---|---|---|
DES PDMU 20G | 1732030120 | 20,5 | 36 | M20 | 1 - max. 10,5 |
DES PDMU 25G | 1732030125 | 25,5 | 40 | M25 | 1 - max. 16 |
DES PDMU 32G | 1732030132 | 32,5 | 46 | M32 | 1 - max. 22 |
DES PDMU 50G | 1732030150 | 50,5 | 64 | M50 | 1 - max. 36 |
DES PDMU 20B | 1732031120 | 20,5 | 36 | M20 | 1 - max. 10,5 |
DES PDMU 25B | 1732031125 | 25,5 | 40 | M25 | 1 - max. 16 |
DES PDMU 32B | 1732031132 | 32,5 | 46 | M32 | 1 - max. 22 |
DES PDMU 50B | 1732031150 | 50,5 | 64 | M50 | 1 - max. 36 |
DES PDMU 20GA | 1732330120 | 20,5 | 36 | M20 | 1 - max. 10,5 |
DES PDMU 25GA | 1732330125 | 25,5 | 40 | M25 | 1 - max. 16 |
DES PDMU 32GA | 1732330132 | 32,5 | 46 | M32 | 1 - max. 22 |
DES PDMU 20BA | 1732331120 | 20,5 | 36 | M20 | 1 - max. 10,5 |
DES PDMU 25BA | 1732331125 | 25,5 | 40 | M25 | 1 - max. 16 |
DES PDMU 32BA | 1732331131 | 32,5 | 46 | M32 | 1 - max. 22 |
