Gyártó: MARECHAL ELECTRIC

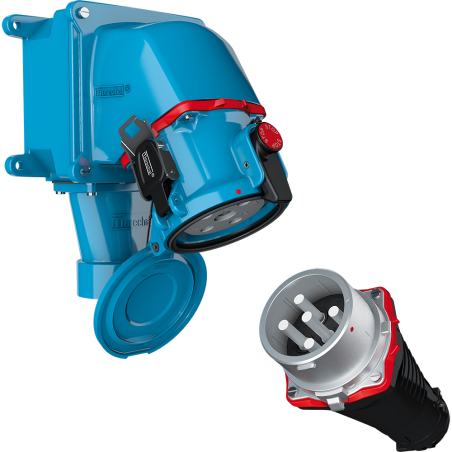

High current connector - decontactor 250A 1000V MAR-DS2

  • MAR-DS2

DS2 DECONTACTOR Socket and Plug (250 A, 1000 V) – Extreme Durability and Safety

Compact, durable, and hermetically sealed, this industrial socket and plug with built-in disconnect switch offers a wide range of mounting options. DS2 DECONTACTOR plugs and sockets meet all industrial electrical connection requirements, supporting a high rated current of 250 A and voltages up to 1000 V. The DS2 series boasts the highest mechanical resistance (IK10), making it the ideal choice for installations with heavy loads and a high risk of mechanical damage.

Key Features and Durability of the DS2 Series

The DS2 Series combines advanced safety features with exceptional impact resistance, ensuring reliability in the most demanding industrial environments.

  • Electrical parameters: 250 A, 1000 V (data from the product specifications).
  • Built-in breaking capacity: AC-22 and AC-23.
  • Automatic IP rating: IP66/IP67.
  • Up to 6 auxiliary units can be installed.
  • Metal casing, highest mechanical resistance IK10.

Global Standards Compliance and Certifications

DS2 connectors guarantee full compliance with key directives and technical standards worldwide, ensuring safe and legal operation in various industries.

  • Compliance with the European Low Voltage Directive (LVD) and RoHS (CE marking) and the European REACH regulation.
  • Compliance with the standards IEC/EN 60309-1, IEC/EN 60309-4, IEC/EN 60947-3 (defining the breaking capacity for the AC-22 and AC-23 usage categories).
  • Compliance with standards UL 1682, UL 2682 (USA), CSA C22.2 N 182.1-07 (Canada), MIL-S-901D (military marine specifications), GB/T 11918.1 (China).
  • Certification by leading organizations: LCIE (France), UL (USA), VDE (Germany), TR CU (Russia), CSA (Canada), Bureau Veritas Marine, MIL-S-901D (Military), CQC (China), SGBP (Singapore).
  • Ensures compliance of electrical machines with the European Machinery Directive regarding disconnectors and with the EN 60204-1 standard: Machinery Safety - Electrical Equipment of Machines.
  • Ensures compliance of electrical installations with the decrees of August 30, 2010, September 22, 2010, and the implementing decrees of the French Labor Code regarding occupational health and safety when using electrical installations.
  • Ensures compliance of electrical installations with national regulations for worker protection in Belgium, Spain, and Italy.
  • Ensures compliance of electrical installations with IEC/HD standards 60364andNF C 15-100.
