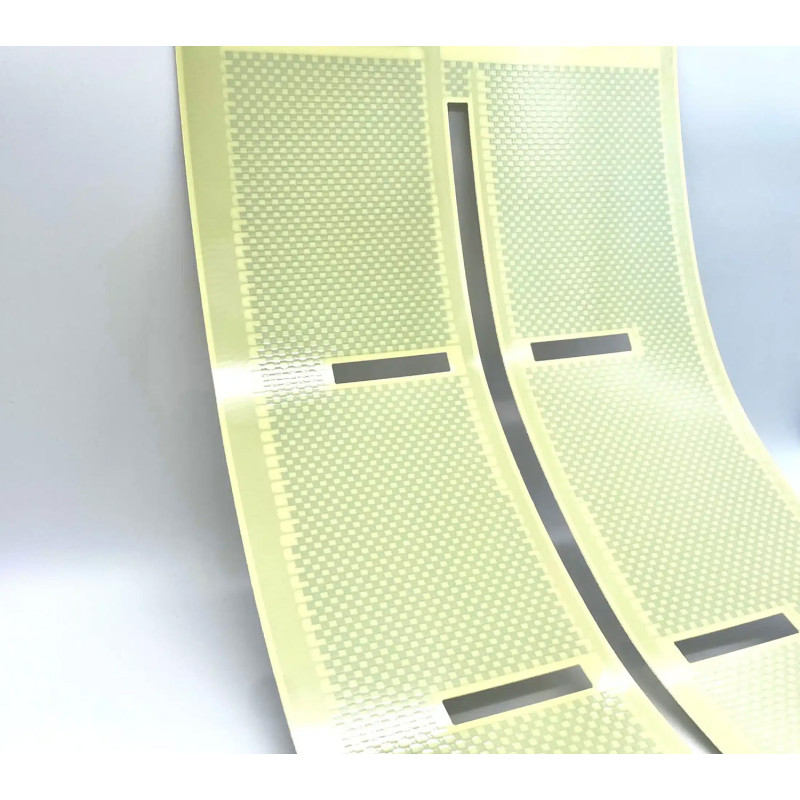

Alper-007 PTC Ink Heaters

Alper promotes PTC (Positive Temperature Coefficient) technology. A special carbon ink with a PTC effect is screen-printed onto a flexible and thin PET substrate. This "self-limiting" heater reaches the temperature specified by the PTC ink without exceeding it.

How does Alper's PTC heater work? As the system temperature increases, the PTC heater increases its resistivity, which leads to a decrease in its power.

Alper's Intelligent PTC Heater Technology

Alper heaters printed with PTC ink feature intelligent technology. Alper heating elements printed with PTC ink are self-limiting – as the system temperature increases, the PTC heater increases its resistivity, which leads to a decrease in its power. This feature, which distinguishes these flexible Alper heaters, makes them suitable for even the most specific and delicate applications, such as those in contact with skin and textiles. The PTC ink heater does not require any additional external temperature limiters.

This makes the heater as thin as foil and reduces production costs, allowing for more favorable prices.

Customizable and Long-lasting

Upon request, the product can be self-adhesive, even partially, and can be equipped with any type of cable and connector. The constant search for new materials has allowed Alper to create PTC heaters that are extremely flexible, efficient, and long-lasting. Our production processes guarantee high quality standards combined with high production capacity. Additive manufacturing processes produce waste that is harmless to the environment and people.

Technical Specifications

• Maximum dimensions: 1000x600mm (custom sizes available upon request).
• Heat uniformity.
• Fast temperature attainment.
• A wide range of double-sided adhesives for every application.
• Cables according to customer specifications.
• No external temperature limiter required.
• Designed according to customer specifications.
• Safe. For applications in contact with skin and textiles.
• Self-limiting temperature:
  • Max. 55°C (3V – 230V)
  • Max. 85°C (3V – 230V)
• Designed in accordance with Directive 2014/35/EU.
