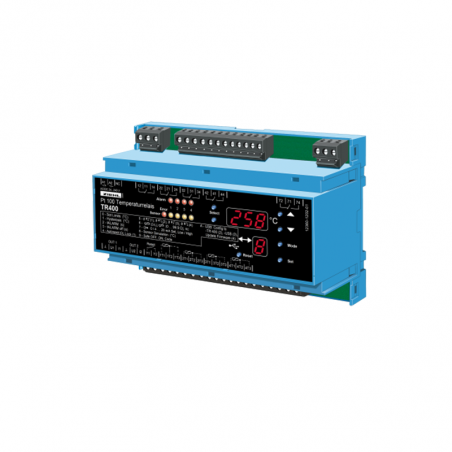

TR400 Releu termic

Product description

The Pt 100 thermostat TR400 is a temperature controller and monitors up to 4 Pt 100 sensors at the same time. 4 switching points and 4 relays permit almost any combination of switching action. It also can select the highest temperature of a group of 3 or 4 sensors. The temperatures of two sensors or groups of sensors can be issued to 2 analog outputs i.e. for remote displays or further evaluation. Programming is very variable and simple.
Due to the fact that 4 type Pt 100 sensors can be connected, the unit is especially suitable for temperature monitoring wherever up to 4 different measuring points must be monitored simultaneously:

  • motors and generators with simultaneous monitoring of bearings and coolant.
  • transformers with additional monitoring of the core temperature also.
  • power machines and plants

Overview of functions

  • Measuring and monitoring range -199 ... +800 °C
  • 4 sensor inputs with 2- or 3-wire connection
  • 4 relay outputs K1 to K4 with change-over contact
  • Sensor Error Relay K7 monitors sensor break or sensor short circuit as well as an
  • interruption of the power-supply.
  • 2 analog outputs, 0/4...20 mA und 0/2...10 V, with individual scaling.
  • Universal power supply AC/DC 24-240 V
  • Terminal for USB-Stick for up- and downloads of sets of parameters and for firmware- updates

Part number

T224380 AC/DC 24-240 V


Technical data

Rated supply voltage Us AC/DC 24-240 V
Tolerance DC DC 20.4...297 V
Tolerance AC AC 20...264 V 50/60 Hz
Power consumption < 4 W, < 13 VA


Sensor connection

4 sensors Pt 100 (RTD) acc. to EN 60751 (2/3- wire)
Measuring range -199°C .. 800°C, resolution = 1°C
Resistance of sensor + wire max. 500 Ohm
Sensor current ≤0,7 mA
Measuring cycle/ time sensor ≤ 1,5 s
Tolerance ±0,5 % of measured value ±1 digit
Temperature factor <0,04°C/K


Analog outputs

Analog outputs OUT 1 and OUT 2
Voltage-output DC 0/2 V – 10 V, max. DC 10 mA
Current output DC 0/4 mA – 20 mA
Load max. 500 Ω
No-load voltage max. DC 16 V
Tolerance 1% of programmed span ±1 °C


Relay-Data K1 … K4 and K7

5 x 1 change-over contacts
Switching voltage max. AC 415 V
Switching current max. 5 A
Switching capacity max. 1250 VA (resistive load)
max. 120 W at DC 24 V
UL electrical ratings 250 V ac, 5 A, resistive
E214025 240 V ac, 1/2 hp
120 V ac, ¼ h
B 300 – pilot duty, UL 508
Nominal operational current Ie
AC15 Tj. = 3 A ...... Ue = 250 V.
DC13 Ie = 2 A ...... Ue = 24 V
Ie = 0,2 A ...... Ue = 125 V
Ie = 0,1 A ...... Ue = 250 V
Recommended fuse NO 4 A time-lag or miniature circuit-breaker MCB B4
Recommended fuse NC 3.15 A time-lag
Expected contact life mechanical 3 x 107 operations
Expected contact life electrical 1 x 105 operations at AC 250 V / 6 A


Test conditions (EN 61010-1)

Rated impulse voltage 4000 V
Overvoltage category III
Contamination level 2
Rated insulation voltage Ui 300 V
On-time 100%


EMC-tests (EN 61326-1)

emitted interference EN 61000-6-3
Burst EN 61000-4-4 +/-4 kV
Pulse 5/50 ns, f = 5 kHz, t = 15 ms, T = 300 ms
SURGE IEC 61000-4-5 +/-4 kV
Impulse 1,2/50 μs (8/20 μs)
discharge of static electricity IEC 61000-4-2
+/-4 kV contact, +/- 8kV air


Environmental conditions

Ambient temperature range -20 °C ... +65 °C
Storage temperature range -20 °C … +70 °C
Altitude Up to 2000 m
Climatic conditions 5 – 85 % rel. humidity, no condensation
External wiring temperature ran -5 °C … +70 °C
Vibration resistance EN 60068-2-6 2…25 Hz ±1.6 mm
25 ... 150 Hz 5 g
Galvanic insulation / Test-voltage Us – Relays, sensors, USB, analog output, Reset input -> DC 3820 V
Relays – sensors, USB, analog output,
Reset input -> DC 3820 V
No galvanic insulation sensors, USB, analog output, Reset input
Reset input Y1/Y2 app. DC 18 V / 3,5 mA
USB connector Typ A, for connecting a USB stick configuration / firmware update


Housing

Design Wpisz V8
Dimensions (H x W x D) 140 x 90 x 58 mm
Mounting height / Width 55 mm / 8 TE
Line connection solid wire je 1 x 1,5 mm2
Stranded wire with isolated ferrules je 1 x 1,0 mm2
Torque 0,5 Nm (3,6 lb.in)
Protection class housing IP 20
Protection class terminals IP 20
Fitting position any
Mounting Snap mounting on 35 mm standard rail EN 60715 or M4 screws
Weight app. 360 g
