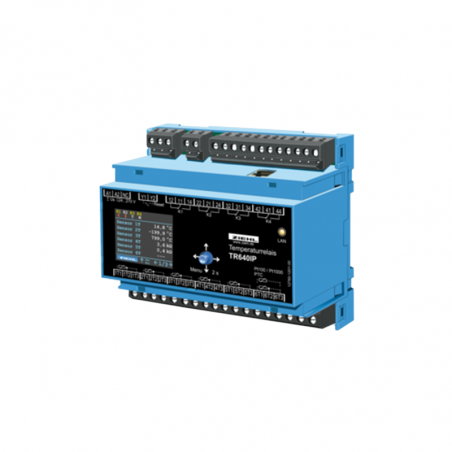

TR640IP releu termic

Temperature Relays TR640IP monitor up to 6 sensors for up to 4 limits. Different sensors can be connected at the same time, e.g. Pt 100 (RTD) and PTC-thermistors. Typical applications are monitoring of motors, generators or transformers. An other application is the use as a 2- or more step-controller with additional monitoring of over- or undertemperature or monitoring of differences in temperatures of 2 sensors.

Preset programs allow easy setting e.g. monitoring of transformers with/without monitoring of temperature of core or with/ without controlling a ventilator.

Operation can be made at the device or with a standard browser via ethernet.

• 6 inputs for sensors Pt 100, Pt 1000 and PTC, mixed sensors possible
• 4 alarms / output relays
• alarm 2 of x = alarm only when limit is exceeded in min. 2 sensors
• monitoring of difference of temperatures
• monitoring of rate of change of temperature
• logging of temperatures and history
• preset programs for protection of motors, transformers and more
• interface ethernet TCP/IP, values available via modbus TCP
• programming with browser via TCP/IP or with joystick at device
• coloured LCD display for clear display of temperatures and states of alarms
• universal power supply AC/DC 24-270 V
