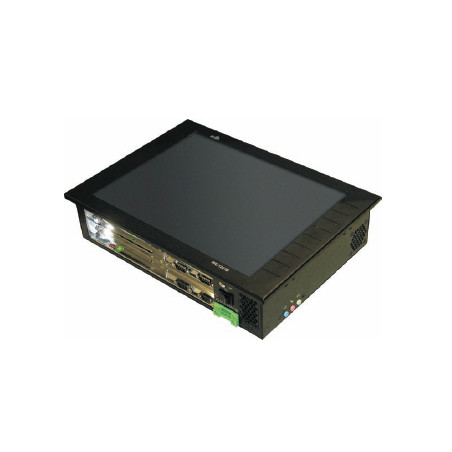

ППЦ-1221 / ППЦ-1222 Индустријска плоча Рачунар са додиром монитор 12.1 "/ ЛАН / ВГА / Аудио / 2усб
  • ППЦ-1221 / ППЦ-1222 Индустријска плоча Рачунар са додиром монитор 12.1 "/ ЛАН / ВГА / Аудио / 2усб

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

ППЦ-1221 / ППЦ-1222 Индустријска плоча Рачунар са додиром монитор 12.1 "/ ЛАН / ВГА / Аудио / 2усб / 2цом

Features:
12.1” TFT LCD,with resistive touch screen (optional)
Inte® CoreTM Duo L2400 1.66G CPU
Supports 2 x 200-pin DDR2 SO-DIMM slot (up to 4GB)
Touch screen Supports 2 x USB2.0, 2 x COM, 1 x LAN, 1 x VGA, 1 x Audio, 1 x PS/2 port (KB/MS)


Specifications
Display Features
Display Screen
12.1” TFT LCD
Display Chipset
Intel GMA950 support CRT+LVDS dual display
Resolution
800x600@60Hz
Brightness
450cd/m2
Contrast ratio
350:1
Touch Screen
 Resistance
System:
SBC Model
Intel Core Duo L2400 1,66GHz, HPC-1811 CLDNA
Chipset
Intel 945GME+ICH7M
Memory
1 G DDRII 533/667, do 4GB DDRII
Expansion Interface
1-255 sec./min, timer system reset/interput
Disc
Supports 160GB 2.5” hard disk ;1 x CompactFlash Socket Type
I/II(optional)
Additional inter
2 x PCI slot
Ethernet:
Chipset
RTL8111D-GR
Speed
10/100/1000 Mbps
Connector
1 x RJ45
I/O Interface
USB
2 x USB 2.0
Serial Port
2 x RS-232
VGA
1 x VGA
KB/MS
1 x PS/2
Audio
HD Audio, available interface of Speaker-out, Mic-in on the rear panel
Mechanical and Environmental
Dimensions
332 x 240 x 75 [mm]
Weight
4,55/7,2 Kg
IP Level(front panel)
IP65
Reliability
MTBF >= 50000h; MTTR<=0,5h
Safety
GB4943
Operating Temperature
0 – 50 oC
Storage Temperature
-20 – 60 oC
Operating Humidity
10-90 %
Power:
Power Supply
DC 9-32V 120W
Operating System
Windows OS
Windows 2000/Windows XP
Embedded OS
Linux/XP Embeded
Test:
Vibration
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
Shock
10g peak acceleration(11ms duration)
EMC/EMI
GB9254-1998 klasa A



Optional Accessories
Driver CD/Protective film/RoHS

Model Description
PPC-1221-0101/touchscreen
12.1” LCD panel PC/Intel®L2400/1GB DDR2 memory/160G,SATA hard disk/1 x VGA port/1 x network port/2 x USB port/2 RS-232/1 PS/2 port/1 set
of audio ports/9~32V DC power supply/aluminum alloy-made front panel /with touch screen
PPC-1221-0102/toughnet glass
12.1” LCD panel PC/Intel®L2400/1GB DDR2 memory/160G,SATA hard disk/1 x VGA port/1 x network port/2 x USB port/2 RS-232/1 PS/2 port/1
set of audio ports/9~32V DC power supply/aluminum alloy-made front panel/toughened glass
PPC-1222-0101/touchscreen
12.1” LCD panel PC/Intel®L2400/1GB DDR2 memory/160G,SATA hard disk/1 x VGA port/1 x network port/2 x USB port/2 RS-232/1 PS/2 port/1
set of audio ports/9~32V DC power supply/metal plate-made front panel /with touch screen
PPC-1222-0102/toughnet glass
12.1” LCD panel PC/Intel®L2400/1GB DDR2 memory/160G,SATA hard disk/1 x VGA port/1 x network port/2 x USB port/2 RS-232/1 PS/2 port/1
set of audio ports/9~32V DC power supply/ metal plate-made front panel /toughened glass
