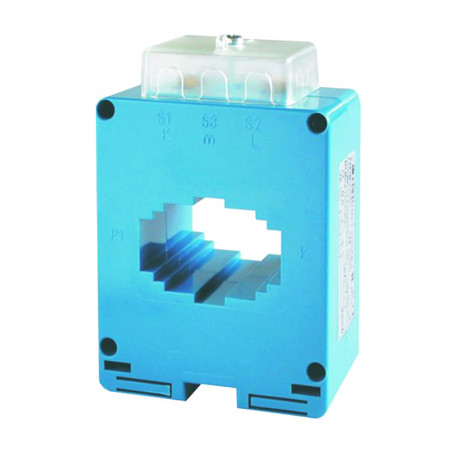

Mjerenje prolaska sabirnice CT’s TAC051
Mjerenje prolaska sabirnice CT’s TAC051

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: FRER

Mjerenje prolaska sabirnice CT’s TAC051

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0,72kV
Test voltage 3kV * 1’50Hz
Insulation Class E
Protection degree IP 20
Continuous overcurrent 1,2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
Max. Power dissipation (max range value) <12,5W
Operating temperature -25 +50°C
Storage temperature -40 +80°C
Manufactured according to IEC/EN 60044-1,
VDE, BS, UTE



Secondary 5 A

Ratio Burden
[VA]		 Code
cl. 0,5 cl. 1
200/5 A 5 10 TAC051200X05
250/5 A 8 12 TAC051250X05
300/5 A 10 20 TAC051300X05
400/5 A 15 20 TAC051400X05
500/5 A 20 30 TAC051500X05
600/5 A 30 50 TAC051600X05
800/5 A 40 60 TAC051800X05
1000/5 A 50 80 TAC0511K0X05
1200/5 A 60 80 TAC0511K2X05
1500/5 A 80 100 TAC0511K5X05



Secondary 1 A

Ratio Burden
[VA]		 Code
cl. 0,5 cl. 1
200/1 A 5 10 TAC051200X01
250/1 A 8 12 TAC051250X01
300/1 A 10 20 TAC051300X01
400/1 A 15 20 TAC051400X01
500/1 A 20 30 TAC051500X01
600/1 A 30 50 TAC051600X01
800/1 A 40 60 TAC051800X01
1000/1 A 50 80 TAC0511K0X01
1200/1 A 60 80 TAC0511K2X01
1500/1 A 80 100 TAC0511K5X01



Secondary 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S
200/5A 1.5 TAC051200J05 1.5 TAC051200Y05
250/5A 3 TAC051250J05 3 TAC051250Y05
300/5A 4 TAC051300J05 4 TAC051300Y05
400/5A 6 TAC051400J05 6 TAC051400Y05
500/5A 10 TAC051500J05 10 TAC051500Y05
600/5A 12 TAC051600J05 12 TAC051600Y05
800/5A 15 TAC051800J05 15 TAC051800Y05
1000/5A 20 TAC0511K0J05 20 TAC0511K0Y05
1200/5A 25 TAC0511K2J05 25 TAC0511K2Y05
1500/5A 30 TAC0511K5J05 30 TAC0511K5Y05



Secondary 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S
200/1A 1.5 TAC051200J01 1.5 TAC051200Y01
250/1A 3 TAC051250J01 3 TAC051250Y01
300/1A 4 TAC051300J01 4 TAC051300Y01
400/1A 6 TAC051400J01 6 TAC051400Y01
500/1A 10 TAC051500J01 10 TAC051500Y01
600/1A 12 TAC051600J01 12 TAC051600Y01
800/1A 15 TAC051800J01 15 TAC051800Y01
1000/1A 20 TAC0511K0J01 20 TAC0511K0Y01
1200/1A 25 TAC0511K2J01 25 TAC0511K2Y01
1500/1A 30 TAC0511K5J01 30 TAC0511K5Y01



Secondary 5 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10
200/5A 2 TAC051200K05
250/5A 3 TAC051250K05
300/5A 3,5 TAC051300K05
400/5A 4 TAC051400K05
500/5A 5 TAC051500K05 1,5 TAC051500L05
600/5A 6 TAC051600K05 2 TAC051600L05
800/5A 7 TAC051800K05 2,5 TAC051800L05
1000/5A 10 TAC0511K0K05 2,8 TAC0511K0L05
1200/5A 12 TAC0511K2K05 3,3 TAC0511K2L05
1500/5A 14 TAC0511K5K05 4 TAC0511K5L05



Secondary 1 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10
200/1A 2 TAC051200K01
250/1A 3 TAC051250K01
300/1A 3,5 TAC051300K01
400/1A 4 TAC051400K01
500/1A 5 TAC051500K01 1,5 TAC051500L01
600/1A 6 TAC051600K01 2 TAC051600L01
800/1A 7 TAC051800K01 2,5 TAC051800L01
1000/1A 10 TAC0511K0K01 2,8 TAC0511K0L01
1200/1A 12 TAC0511K2K01 3,3 TAC0511K2L01
1500/1A 14 TAC0511K5K01 4 TAC0511K5L01


Dimensions

Przekładnik prądowy TAC051 wymiary
