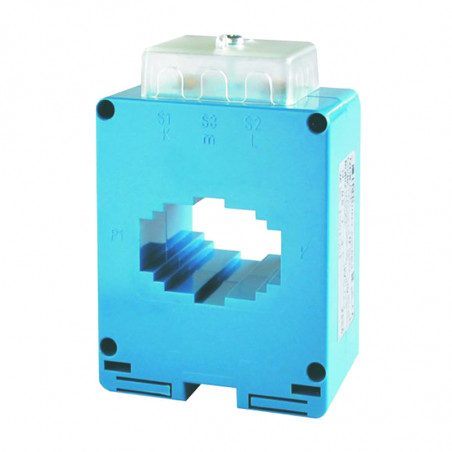

TAC051 current transformer for a 51x18mm rail
TAC051 current transformer for a 51x18mm rail

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FRER

TAC051 current transformer for a 51x18mm rail

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0,72kV
Test voltage 3kV * 1’50Hz
Insulation Class E
Protection degree IP 20
Continuous overcurrent 1,2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
Max. Power dissipation (max range value) <12,5W
Operating temperature -25 +50°C
Storage temperature -40 +80°C
Manufactured according to IEC/EN 60044-1,
VDE, BS, UTE



Secondary 5 A

Ratio Burden
[VA]		 Code
cl. 0,5 cl. 1
200/5 A 5 10 TAC051200X05
250/5 A 8 12 TAC051250X05
300/5 A 10 20 TAC051300X05
400/5 A 15 20 TAC051400X05
500/5 A 20 30 TAC051500X05
600/5 A 30 50 TAC051600X05
800/5 A 40 60 TAC051800X05
1000/5 A 50 80 TAC0511K0X05
1200/5 A 60 80 TAC0511K2X05
1500/5 A 80 100 TAC0511K5X05



Secondary 1 A

Ratio Burden
[VA]		 Code
cl. 0,5 cl. 1
200/1 A 5 10 TAC051200X01
250/1 A 8 12 TAC051250X01
300/1 A 10 20 TAC051300X01
400/1 A 15 20 TAC051400X01
500/1 A 20 30 TAC051500X01
600/1 A 30 50 TAC051600X01
800/1 A 40 60 TAC051800X01
1000/1 A 50 80 TAC0511K0X01
1200/1 A 60 80 TAC0511K2X01
1500/1 A 80 100 TAC0511K5X01



Secondary 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S
200/5A 1.5 TAC051200J05 1.5 TAC051200Y05
250/5A 3 TAC051250J05 3 TAC051250Y05
300/5A 4 TAC051300J05 4 TAC051300Y05
400/5A 6 TAC051400J05 6 TAC051400Y05
500/5A 10 TAC051500J05 10 TAC051500Y05
600/5A 12 TAC051600J05 12 TAC051600Y05
800/5A 15 TAC051800J05 15 TAC051800Y05
1000/5A 20 TAC0511K0J05 20 TAC0511K0Y05
1200/5A 25 TAC0511K2J05 25 TAC0511K2Y05
1500/5A 30 TAC0511K5J05 30 TAC0511K5Y05



Secondary 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S
200/1A 1.5 TAC051200J01 1.5 TAC051200Y01
250/1A 3 TAC051250J01 3 TAC051250Y01
300/1A 4 TAC051300J01 4 TAC051300Y01
400/1A 6 TAC051400J01 6 TAC051400Y01
500/1A 10 TAC051500J01 10 TAC051500Y01
600/1A 12 TAC051600J01 12 TAC051600Y01
800/1A 15 TAC051800J01 15 TAC051800Y01
1000/1A 20 TAC0511K0J01 20 TAC0511K0Y01
1200/1A 25 TAC0511K2J01 25 TAC0511K2Y01
1500/1A 30 TAC0511K5J01 30 TAC0511K5Y01



Secondary 5 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10
200/5A 2 TAC051200K05
250/5A 3 TAC051250K05
300/5A 3,5 TAC051300K05
400/5A 4 TAC051400K05
500/5A 5 TAC051500K05 1,5 TAC051500L05
600/5A 6 TAC051600K05 2 TAC051600L05
800/5A 7 TAC051800K05 2,5 TAC051800L05
1000/5A 10 TAC0511K0K05 2,8 TAC0511K0L05
1200/5A 12 TAC0511K2K05 3,3 TAC0511K2L05
1500/5A 14 TAC0511K5K05 4 TAC0511K5L05



Secondary 1 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10
200/1A 2 TAC051200K01
250/1A 3 TAC051250K01
300/1A 3,5 TAC051300K01
400/1A 4 TAC051400K01
500/1A 5 TAC051500K01 1,5 TAC051500L01
600/1A 6 TAC051600K01 2 TAC051600L01
800/1A 7 TAC051800K01 2,5 TAC051800L01
1000/1A 10 TAC0511K0K01 2,8 TAC0511K0L01
1200/1A 12 TAC0511K2K01 3,3 TAC0511K2L01
1500/1A 14 TAC0511K5K01 4 TAC0511K5L01


Dimensions

Przekładnik prądowy TAC051 wymiary

Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in
