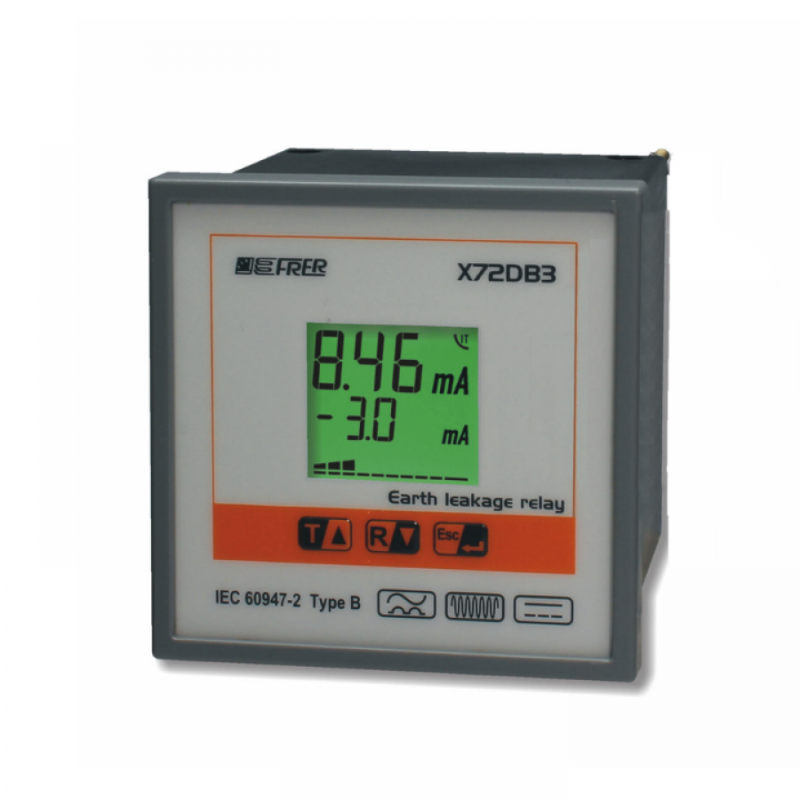

Type B Earth Leakage Relay X72DB3 distinguished by 72 x 72 mm size

The type B earth leakage relays of the X...DB3 series are designed for intuitive and automatic detection of continuous, alternating and high-frequency leakage currents. The special feature of these relays is the continuous and immediate monitoring of the insulation status via the multi-coloured display.



Main functions

  • Continuous digital indication of the leakage current: total RMS, AC fundamental, AC high frequency
  • Storing of the intervention current values
  • Internal clock and storage of the last 10 events
  • RS485 Modbus RTU for measurements, event archive, scope
  • Selectable antifibrillation filter with fire protection 300mA
  • Selectable 3rd harmonic filter
  • Double threshold: total RMS and DC component
  • AC measurements up to 10kHz



Technical data

Parameter Value
Display Multicolor backlight LCD
Display maximum indication 3 digits
Dot point position Automatic
Bargraph 10 levels
Residual current measurement IΔ Type B - TRMS
Display refresh 500ms (average value)
Measurement bandwidth DC; 2,5Hz – 10kHz
Base precision ±0,5%
Antifibrillation LPF IEC 62423, VDE 0664-T-100, fire protection 300mA
3rd harmonic LPF Attenuation 80% @ 150Hz
IΔN current range 0,030 ÷ 15 A;
Trip contact SPDT (COM, NO, NC)
Nominal load 6A, 250VAC AC1; 6A, 24VDC DC1 3A, 250VAC AC15; 2A, 24VDC DC13 (IEC60947-5-1)
SAfety Standard (ND) or positive (NE)
Insulation and safety According to IEC 61010-1, IEC 60947-1
Operating temperature 0…+50˚C
Storage temperature -30˚C…+70˚C
Thermoplastic material UL 94-V0



Additional technical data

Parameter Value
Automatic sensor connection test Voltage pulse
Alarm (optional) SPDT (COM, NO, NC) – Standard X72DB3
SPST (COM, NO) – Optional X35DB3/X48DB3
Alarm setting OFF, 5-100% IΔN
Activation delay 20ms-30s
Release delay LATCH - 20ms – 30s
Special functions Reclose; 2nd Trip i IΔnDC
Relay nominal load 6A, 250VAC AC1; 6A, 24VDC DC1 3A, 250VAC AC15; 2A, 24VDC DC13 (IEC60947-5-1)
PhotoMOS nominal load 100mA, 250VAC/DC (CAT II) – 150VAC/DC (CAT III) 350VPK-PK (including overvoltage)
Safety Standard (ND) or positive (NE)
Test-Reset Input (optional) Command > 2s
Modbus RTU (optional) RS485 insulated, A+, B-, GND (optional)
Transfer rate 9600, 19200, 38400, 57600 bit/s
Programmable parameters Parity and Stop bits
Programmable address 1 – 247
Scope function 120 samples (12bit), with amplitude and time scales
Real Time Clock (optional) RTC with Battery backup
Archive event store Last 10 events, with Timestamp



Ordering codes X_ _DB3:

Type ordering X _ _ D B 3 _ _ _ _ _ _ _ _
Dimensions 2 mod. DIN X 3 5 D B 3
48x48mm X 4 8 D B 3
72x72mm X 7 2 D B 3
Nominal frequency DC [&] 50-60 Hz 4 D C
DC [&] 400 Hz Q D C
DC [&]50–60 Hz IΔn 1÷50 A * 0 5 0
Options Test Reset input R 1 0
RS485 Modbus RTU M 1 0
PhotoMOS Alarm X 1 L
Relay Alarm X 1 1
TCS Alarm T C S
Supply voltage 230VAC±10%; 3VA 2
20 – 60V AC/DC <4VA/2,5W L
80 – 260V AC/DC <6,5VA/2,5W H
Real Time Clock no
yes C

* - only with TDB321–TDB471

Мање
Опширније

Пошаљите упит

Да ли вас занима овај производ? Да ли су вам потребне додатне информације или појединачне цене?

Контактирајте нас
Питајте производ close
Хвала вам што сте послали поруку. Одговорићемо у најкраћем могућем року.
Питајте производ close
Прегледајте
пошаљите упит

Додај у листу жеља

морате бити пријављени

Type B Earth Leakage Relay X72DB3 distinguished by 72 x 72 mm size

The type B earth leakage relays of the X...DB3 series are designed for intuitive and automatic detection of continuous, alternating and high-frequency leakage currents. The special feature of these relays is the continuous and immediate monitoring of the insulation status via the multi-coloured display.



Main functions

  • Continuous digital indication of the leakage current: total RMS, AC fundamental, AC high frequency
  • Storing of the intervention current values
  • Internal clock and storage of the last 10 events
  • RS485 Modbus RTU for measurements, event archive, scope
  • Selectable antifibrillation filter with fire protection 300mA
  • Selectable 3rd harmonic filter
  • Double threshold: total RMS and DC component
  • AC measurements up to 10kHz



Technical data

Parameter Value
Display Multicolor backlight LCD
Display maximum indication 3 digits
Dot point position Automatic
Bargraph 10 levels
Residual current measurement IΔ Type B - TRMS
Display refresh 500ms (average value)
Measurement bandwidth DC; 2,5Hz – 10kHz
Base precision ±0,5%
Antifibrillation LPF IEC 62423, VDE 0664-T-100, fire protection 300mA
3rd harmonic LPF Attenuation 80% @ 150Hz
IΔN current range 0,030 ÷ 15 A;
Trip contact SPDT (COM, NO, NC)
Nominal load 6A, 250VAC AC1; 6A, 24VDC DC1 3A, 250VAC AC15; 2A, 24VDC DC13 (IEC60947-5-1)
SAfety Standard (ND) or positive (NE)
Insulation and safety According to IEC 61010-1, IEC 60947-1
Operating temperature 0…+50˚C
Storage temperature -30˚C…+70˚C
Thermoplastic material UL 94-V0



Additional technical data

Parameter Value
Automatic sensor connection test Voltage pulse
Alarm (optional) SPDT (COM, NO, NC) – Standard X72DB3
SPST (COM, NO) – Optional X35DB3/X48DB3
Alarm setting OFF, 5-100% IΔN
Activation delay 20ms-30s
Release delay LATCH - 20ms – 30s
Special functions Reclose; 2nd Trip i IΔnDC
Relay nominal load 6A, 250VAC AC1; 6A, 24VDC DC1 3A, 250VAC AC15; 2A, 24VDC DC13 (IEC60947-5-1)
PhotoMOS nominal load 100mA, 250VAC/DC (CAT II) – 150VAC/DC (CAT III) 350VPK-PK (including overvoltage)
Safety Standard (ND) or positive (NE)
Test-Reset Input (optional) Command > 2s
Modbus RTU (optional) RS485 insulated, A+, B-, GND (optional)
Transfer rate 9600, 19200, 38400, 57600 bit/s
Programmable parameters Parity and Stop bits
Programmable address 1 – 247
Scope function 120 samples (12bit), with amplitude and time scales
Real Time Clock (optional) RTC with Battery backup
Archive event store Last 10 events, with Timestamp



Ordering codes X_ _DB3:

Type ordering X _ _ D B 3 _ _ _ _ _ _ _ _
Dimensions 2 mod. DIN X 3 5 D B 3
48x48mm X 4 8 D B 3
72x72mm X 7 2 D B 3
Nominal frequency DC [&] 50-60 Hz 4 D C
DC [&] 400 Hz Q D C
DC [&]50–60 Hz IΔn 1÷50 A * 0 5 0
Options Test Reset input R 1 0
RS485 Modbus RTU M 1 0
PhotoMOS Alarm X 1 L
Relay Alarm X 1 1
TCS Alarm T C S
Supply voltage 230VAC±10%; 3VA 2
20 – 60V AC/DC <4VA/2,5W L
80 – 260V AC/DC <6,5VA/2,5W H
Real Time Clock no
yes C

* - only with TDB321–TDB471
