СИЛИФЛАМ ТХС 1500 + 900 ° Ц до 1400 ° Ц - хигх температуре каблови
  • СИЛИФЛАМ ТХС 1500 + 900 ° Ц до 1400 ° Ц - хигх температуре каблови

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: OMERIN

СИЛИФЛАМ ТХС 1500 + 900 ° Ц до 1400 ° Ц - хигх температуре каблови

Characteristics

  • Continuous operating temperatures: See general presentation sheet (FT 3301).
  • Good resistance to thermal shocks and ageing.
  • Rated voltage: 300/500 V to 600/1000V
  • Test voltage:

 THS 1500 series: 1500 V.
 THS 1530 and 1550 series: 2500V.

Standard products

  • See also: Range presentation sheet (FT 3301).
  • Ref. THS 1500 U: Unipolar - THS 1500 type insulation.
  • Ref. THS 1500 M: Multi-conductor - THS 1500 type insulation and sheathing.
  • Ref. THS 1530 U/M: THS 1500 insulation / sheathing with PTFE reinforcement.
  • Ref. THS 1550 U/M: THS 1500 insulation / sheathing with polyimide reinforcement.
  • Ref. THS 1500 U/M - BCN: Nickel-plated copper electrical screen.
  • Ref. THS 1500 U/M - BI: Stainless steel flexible armour.

Approvals - standards

  • Nickel type 200, as per standards DIN 17753, DIN 17740 and ASTM B160.

Applications

  • See range presentation sheet (FT 3301). The THS 1500 series is recommended for zones subject to the most extreme temperatures.

Options

  • Other nominal cross-sections: contact us.
  • Other numbers of conductors: contact us.
  • 27% nickel-plated copper conducting cores: contact us.
  • Refractory metal conducting cores: contact us.
  • Other options or cables based on the THS 1200 series, designed on request: contact us.
 SILIFLAM THS 1500 1100°C do +1400°C kable wysokotemperaturowe

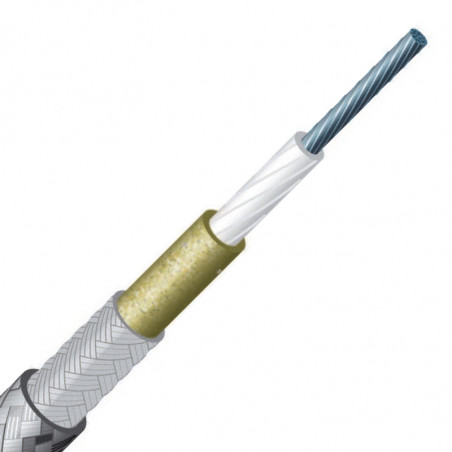

1 • Type 200 pure nickel core as per ASTM B160.
2 • (Optional) 2 heat-sealed PTFE (THS 1530) or polyimide (THS 1550) tapes.
3 • THS 1500 type composite insulation and sheathing: mica and coated borosilicoaluminate fibre.
4 • (Optional) Nickel-plated copper electrical screen braid.
5 • (Optional) AISI 304 stainless steel outer shielding.

Conducting core INSULATED CONDUCTORS SHEATHED CABLE
Nominal cross-section (mm2 Nominal stranding Maximum linear resistance at 20 °C (Ω/km) Approximate diameter of single conductors (THS 1500 M version) (mm) Approximate diameter of cable (THS 1500 U and THS 1500 M version) (mm)
1 x 0.5 7 x 0.30 229 - 2.2
1 x 0.75 11 x 0.30 156 - 2.6
1 x 1 14 x 0.30 115 - 3.0
1 x 1.5 21 x 0.30 77.2 - 3.2
1 x 2.5 35 x 0.30 47.2 - 3.8
1 x 4 56 x 0.30 31.5 - 4.5
1 x 6 84 x 0.30 21.0 - 5.0
2 x 0.5 7 x 0.30 229 2.2 6.1
3 x 0.5 7 x 0.30 229 2.2 6.4
4 x 0.5 7 x 0.30 229 2.2 6.9
5 x 0.5 7 x 0.30 229 2.2 7.7
7 x 0.5 7 x 0.30 229 2.2 8.3
2 x 0.75 11 x 0.30 156 2.6 6.8
3 x 0.75 11 x 0.30 156 2.6 7.0
4 x 0.75 11 x 0.30 156 2.6 7.7
5 x 0.75 11 x 0.30 156 2.6 8.4
7 x 0.75 11 x 0.30 156 2.6 9.1
2 x 1 14 x 0.30 115 3.0 7.7
3 x 1 14 x 0.30 115 3.0 8.2
4 x 1 14 x 0.30 115 3.0 8.9
5 x 1 14 x 0.30 115 3.0 9.8
7 x 1 14 x 0.30 115 3.0 10.6
2 x 1.5 21 x 0.30 77.2 3.2 8.0
3 x 1.5 21 x 0.30 77.2 3.2 8.5
4 x 1.5 21 x 0.30 77.2 3.2 9.2
5 x 1.5 21 x 0.30 77.2 3.2 10.2
7 x 1.5 21 x 0.30 77.2 3.2 11.2
2 x 2.5 35 x 0.30 47.2 3.8 9.1
3 x 2.5 35 x 0.30 47.2 3.8 9.6
4 x 2.5 35 x 0.30 47.2 3.8 10.7
2 x 4 56 x 0.30 31.5 4.5 10.6
3 x 4 56 x 0.30 31.5 4.5 11.2
4 x 4 56 x 0.30 31.5 4.5 12.5
2 x 6 84 x 0.30 21.0 5.0 11.6
3 x 6 84 x 0.30 21.0 5.0 12.4
4 x 6 84 x 0.30 21.0 5.0 13.7
