Произвођач: SALTEK

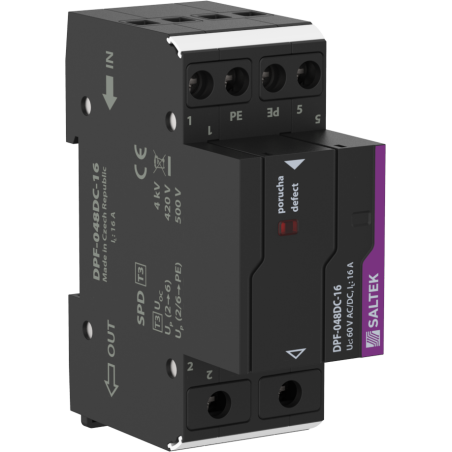

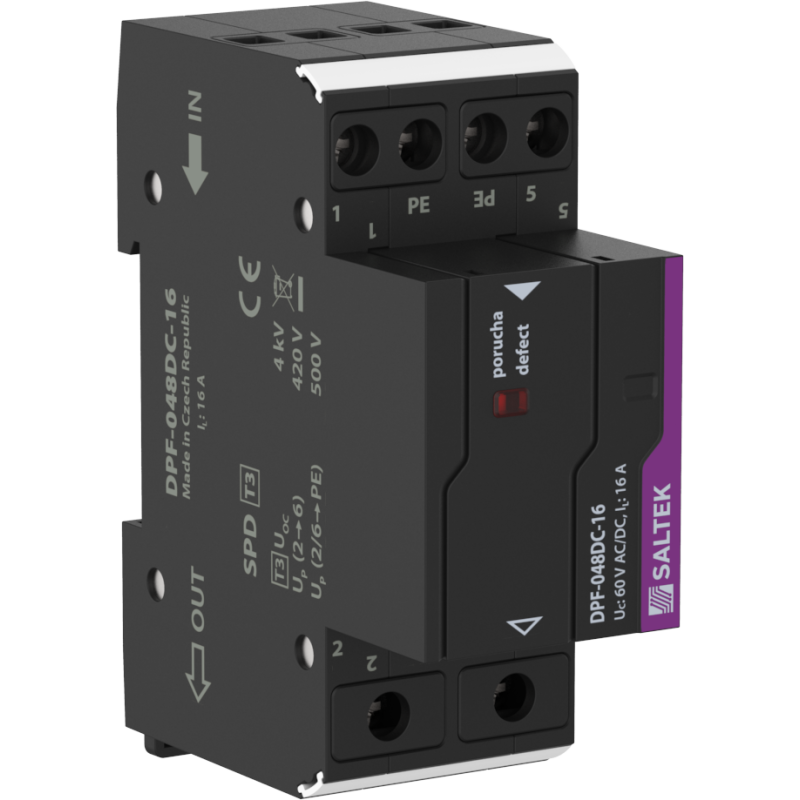

DPF-048DC-16 - Ограничивач пренапона (SPD)

  • DPF-048DC-16
  • Напон 48 V AC
  • Степен заштите IP 20
  • Тип SPD T3
  • Максималан радни напон 60.00 V AC
Parameter name Parameter value
Type of SPD T3
VF filter yes
Mounting DIN rail 35 mm
Nominal voltage Un 48 V AC
Maximum operating voltage Uc 60.00 V AC
Maximum operating voltage Uc 60.00 V DC
Nominal load current IL 16.000 A
Maximum overcurrent protection 16 A gL/gG or C 16 A
Filter attenuation at 1MHz (50 ?/50 ?) symmetrical 45 dB
Filter attenuation at 1MHz (50 Ω//50 Ω/) unsymmetrical 30 dB
Test voltage L+ - L- 4.0 kV
Test voltage L+(L-)-PE 4.0 kV
voltage protection level L+ - L- 0.42 kV
voltage protection level L+(L-)-PE 0.50 kV
Response time L+ - L- 25 ns
Response time L+(L-)-PE 100 ns
Connection (input - output) terminals-terminals
Cross-section of connected conductors solid (max) 6.00 mm2
Cross-section of connected conductors stranded (max) 6.00 mm2
Fault indication red indicator
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000942
Customs tariff number 85363010
EAN 8595090566373
