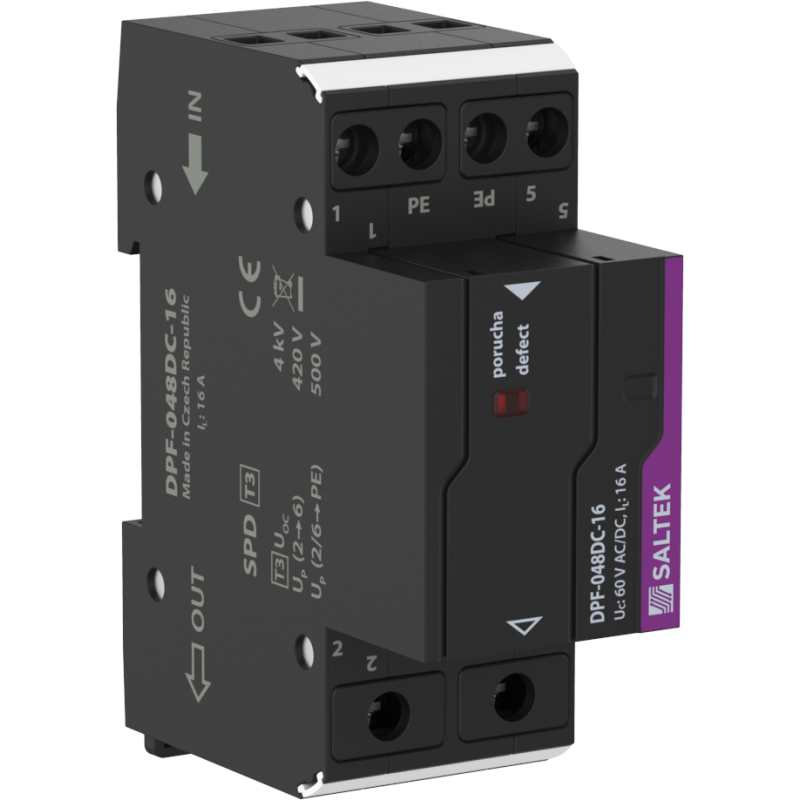

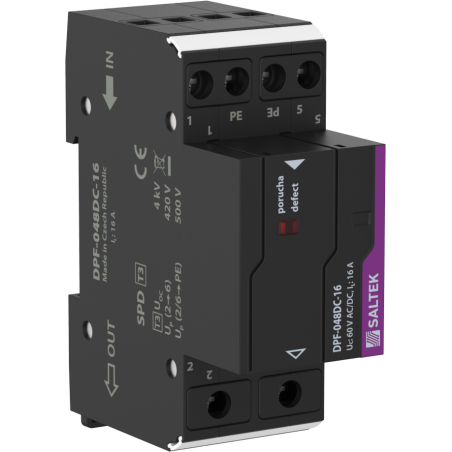

Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T3 | |
| VF filter | yes | |
| Mounting | DIN rail 35 mm | |
| Nominal voltage | Un | 48 V AC |
| Maximum operating voltage | Uc | 60.00 V AC |
| Maximum operating voltage | Uc | 60.00 V DC |
| Nominal load current | IL | 16.000 A |
| Maximum overcurrent protection | 16 A gL/gG or C 16 A | |
| Filter attenuation at 1MHz (50 ?/50 ?) symmetrical | 45 dB | |
| Filter attenuation at 1MHz (50 Ω//50 Ω/) unsymmetrical | 30 dB | |
| Test voltage L+ - L- | 4.0 kV | |
| Test voltage L+(L-)-PE | 4.0 kV | |
| voltage protection level L+ - L- | 0.42 kV | |
| voltage protection level L+(L-)-PE | 0.50 kV | |
| Response time L+ - L- | 25 ns | |
| Response time L+(L-)-PE | 100 ns | |
| Connection (input - output) | terminals-terminals | |
| Cross-section of connected conductors solid (max) | 6.00 mm2 | |
| Cross-section of connected conductors stranded (max) | 6.00 mm2 | |
| Fault indication | red indicator | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 80 °C | |
| Humidity | 5 - 95 % | |
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 | |
| ETIM Class | EC000942 | |
| Customs tariff number | 85363010 | |
| EAN | 8595090566373 |
