Произвођач: Victron energy

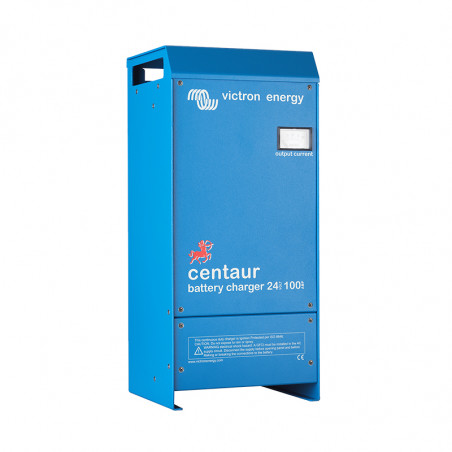

Царгер Вицтрон Енерги Ценрур

Quality without compromise
Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating formaximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.

Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)
All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.

The chargers also accept a 90-400V DC supply.

Three outputs that each can supply the full output current
Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.

Three stage charging, with temperature compensation
The Centaur charges at bulk rate until the output has reduced to 70 % of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate.
An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A dip switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.

Learn more about batteries and battery charging
To learn more about batteries and charging batteries (including the pro’s and con’s of multi bank charging and intelligent charging), please refer to our book ‘Electricity on Board’(available free of charge from Victron Energy and downloadable from www.victronenergy.com).

Charge curve

Application example
Centaur Battery Charger 24 30 charge curve Centaur Battery Charger 24 30 application example


Centaur Charger 12/20 12/30 24/16 12/40 12/50 12/60 24/30 12/80 24/40 12/100 24/60
Ulazni napon (V AC) 90 - 265
Ulazni napon(V DC) 90 - 400
Ulazna frekvencija
(Hz)		 5 6 i 5 4
Faktor snage 1
Napon punjenja 'apsorpcija''(V DC) 14,3 / 28,5 (1)
Napon punjenja 'pluta'(V DC) 13,5 / 27,0 (1)
Izlazne banke 3
Napunjena struja (A) (2) 20 30 / 16 40 50 60 / 30 80 / 40 100 / 60
Ukupni izlazni ampermetar Yes
Karakteristika punjenja IUoU (Three stage charging)

Preporučena baterija
kapacitet

 (Ah)		 80 - 200 120 300 45 - 150 160 400 200 500 240 600 120 300 320 - 800 160 - 400 400 - 1000 240 - 600
Senzor temperature Internal, - 2mV / °C (- 1mV / °F) per cell
Prisilno hlađenje Da, ventilator koji kontrolira temperaturu i struju
Zastita Kratki spoj na izlazu, preko temperature
Temperatura rada - 20 to 60°C (0 - 140°F)
Zaštićeno od paljenja Yes
Vlaga (non condesing) max 95%
ENCLOSURE
Material[&]Boja aluminium (blue RAL 5012)
Baterija-veza M6 studs M6 studs M8 studs M8 studs M8 studs M8 studs M8 studs
AC-veze screw-clamp 4 mm2 (AWG 6)
Kategorija zaštite IP 21
Tezina kg (lbs) 3,8 (8.4) 3,8 (8.4) 5 (11) 5 (11) 5 (11) 12 (26) 12 (26)
Dimenzijehxwxd in mm(hxwxd in inches) 355x215x110 (14.0x8.5x4.3) 355x215x110 (14.0x8.5x4.3) 426x239x135 (16.8x9.4x5.3) 426x239x135 (16.8x9.4x5.3) 426x239x135 (16.8x9.4x5.3) 505x255x130 (19.9x10.0x5.2) 505x255x130 (19.9x10.0x5.2)
STANDARDS
Sigurnost EN 60335-1, EN 60335-2-29, UL 1236
Imunost emisije EN 55014-1, EN 61000-3-2
Automobilska direktiva EN 55014-2, EN 61000-3-3
1)

Standardna postavka. Optimalni napon punjenja / plovka za natopljenu olovnu kiselinu, Gel-Cell ili AGM baterije koje je moguće odabrati prekidačem.
2) Okoliš do 40 ° C (100 ° F). Izlaz će se smanjiti na oko 80% nazivnog na 50 ° C (120 ° F) i 60% nazivnog na 60 ° C (140 ° F).

Dodatni pribor

Monitor baterije BMV-600

Monitor baterije baterije BMV - 600 ima napredni mikroprocesorski upravljački sustav u kombinaciji s mjernim sustavima visoke rezolucije za napon akumulatora i struju punjenja / pražnjenja. Uz to, softver uključuje složene algoritme za proračun, kao što je Peukertova formula da se tačno utvrdi stanje napunjenosti baterije. BMV - 600 selektivno prikazuje napon akumulatora, struju, potrošenu Ah ili vrijeme koje treba proći.

BMV-600 Battery Monitor


Alarm akumulatora

Prevelik ili nizak napon akumulatora označava se zvučnim i vizualnim alarmom.

Battery Alarm


Ugradnja je jednostavna

1. Pričvrstite zasebnu montažnu ploču (A) na zid na koji želite postaviti punjač za baterije i jednostavno spojite Centaur.
2. Pričvrstite donji dio stražnje strane (B) na zid.

Installation made easy
